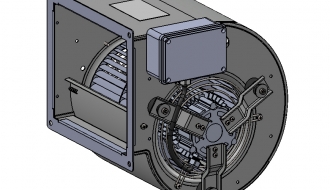

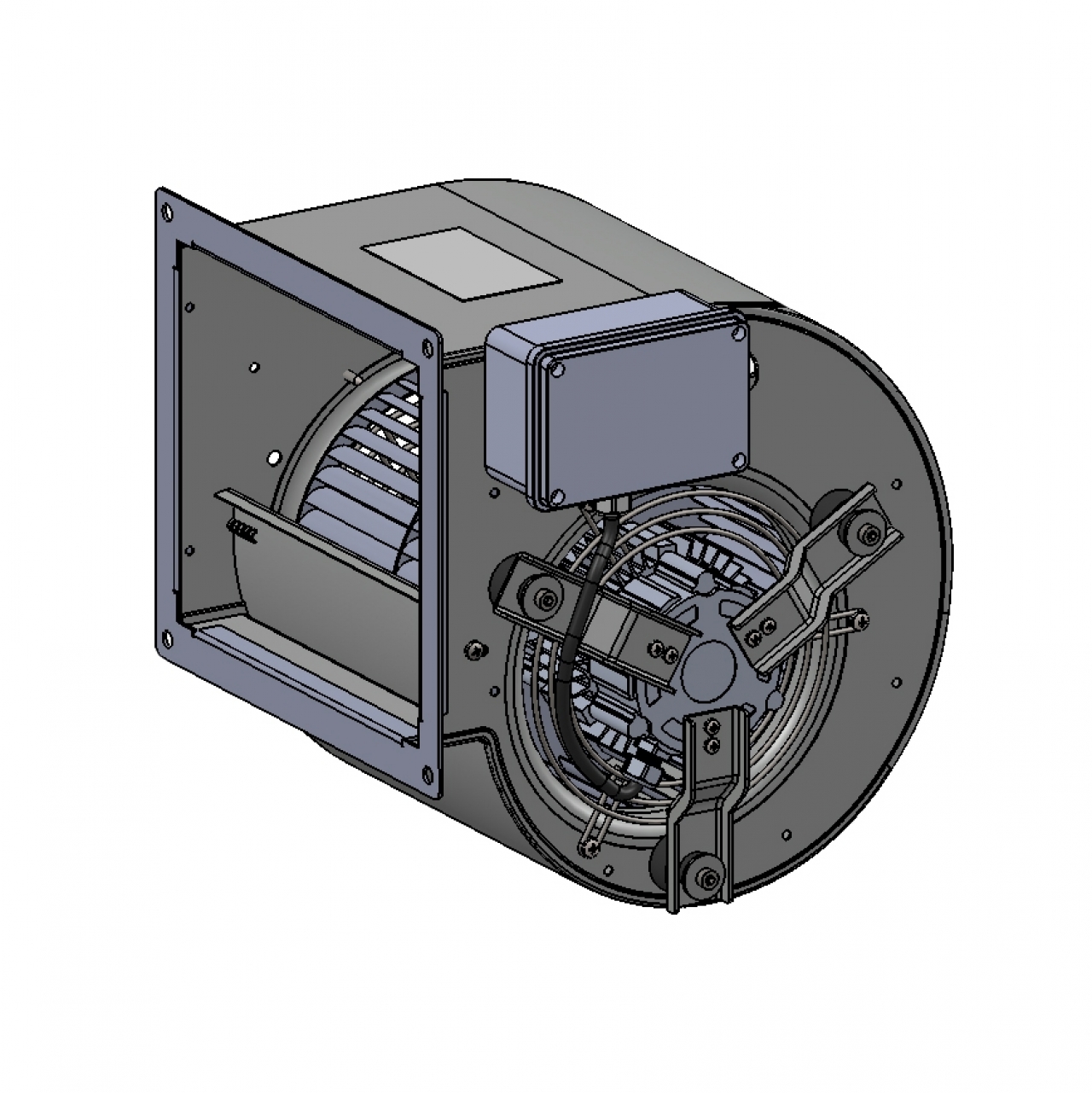

Radial fan 1300 m³ per hour - for wall hoods
Tuotekoodi: SKURS1620H
Tavaran paino: 9kg
Mitat: B 320 x T 318 x H 342 mm
Varastossa
-
+
Lisää koriinKysy hintaa
Design
- Built-in motor for wall hoods
- TOP performance 1300 m³
- Temperature: from -20 °C to +40 °C
- Low energy consumption
- Self-aligning lubricant nozzle
- Without speed regulator and feet
- Practical, maintenance-free machine
- Easy to clean
- Easy mounting
Quality

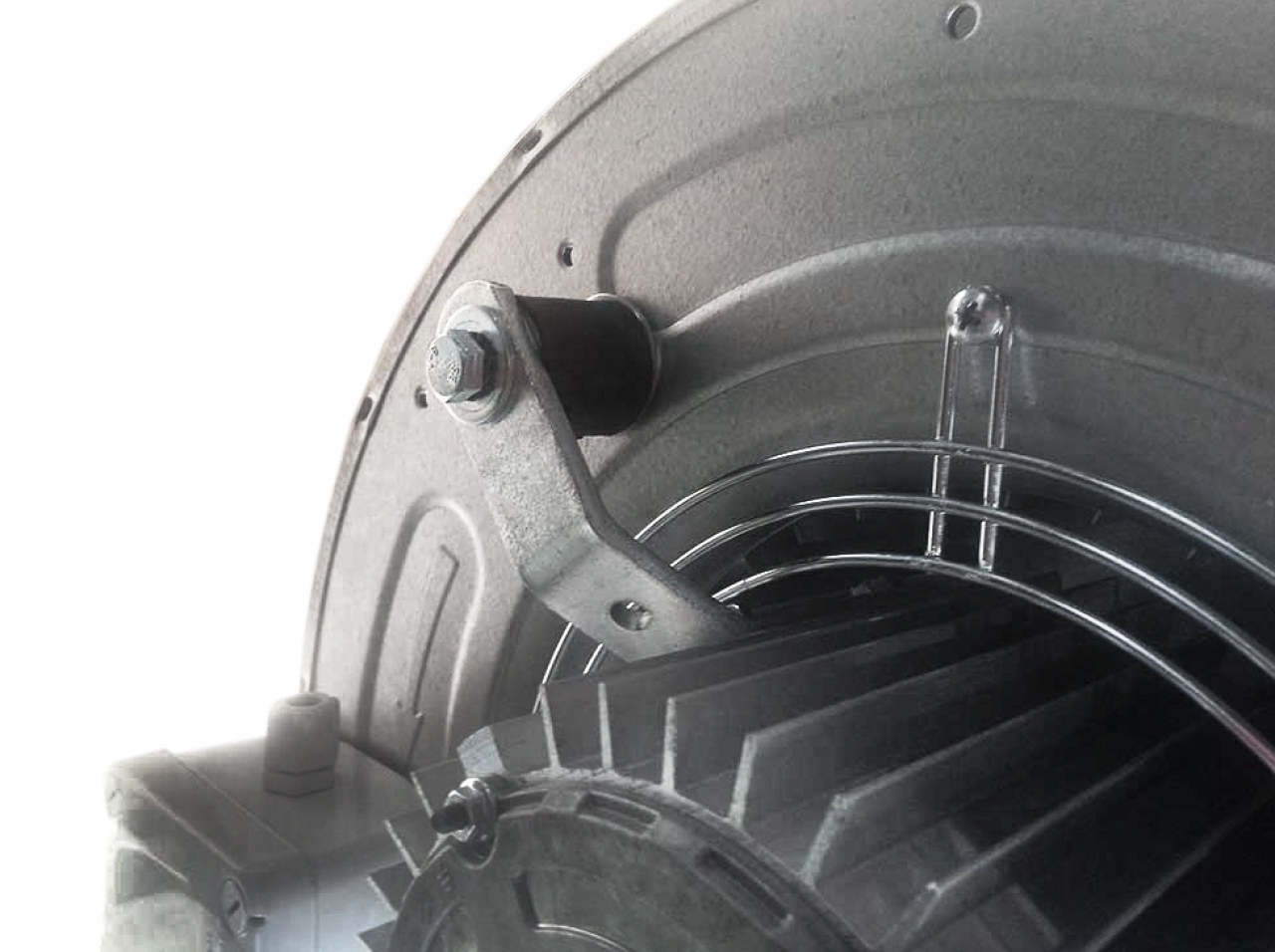

- Radial fan made of galvanised steel
- Fan wheel made of galvanised steel

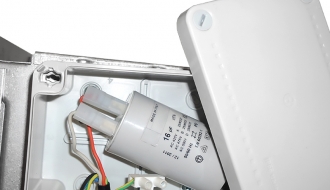

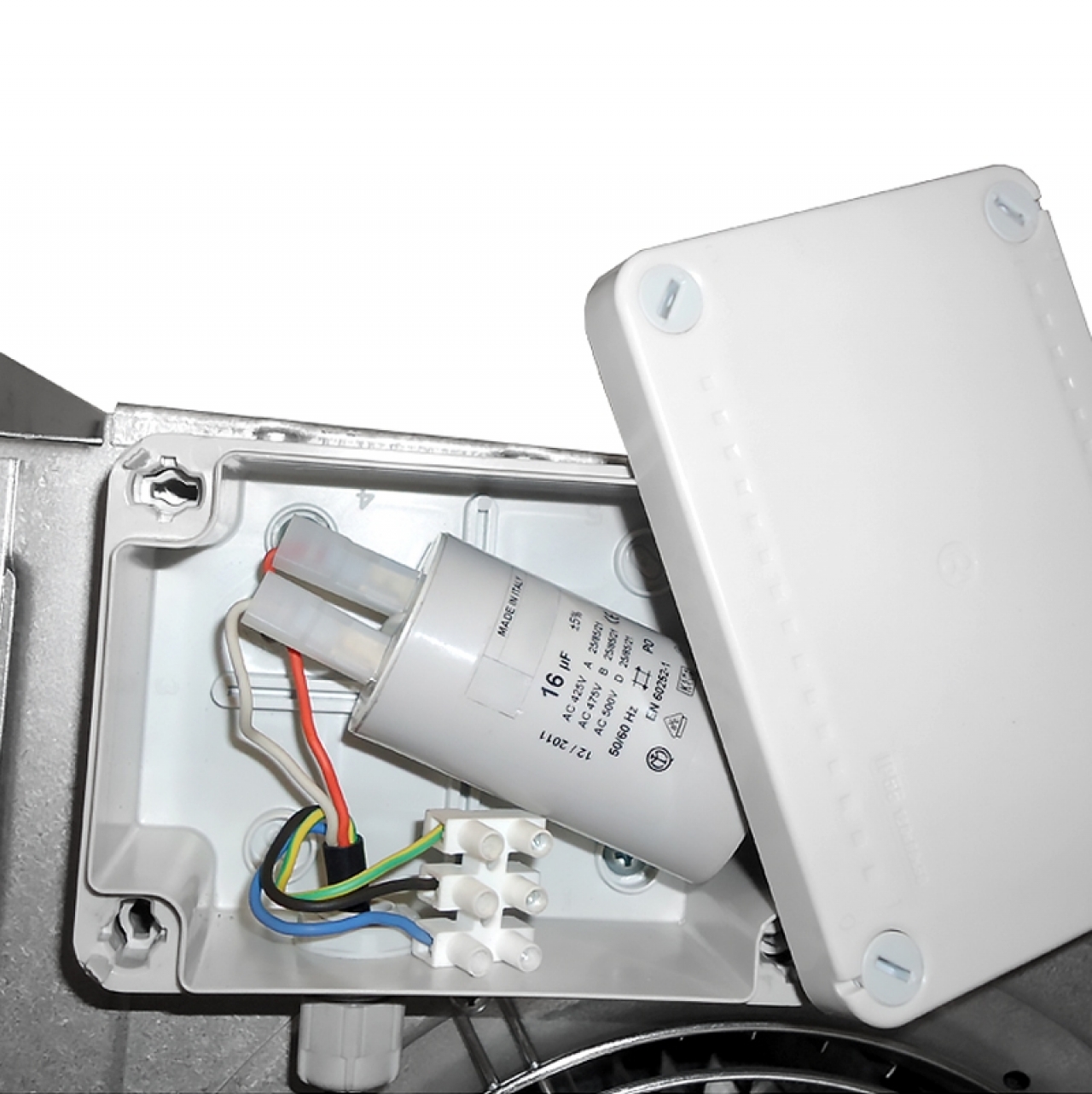

Connection:
- Output: 147 watt

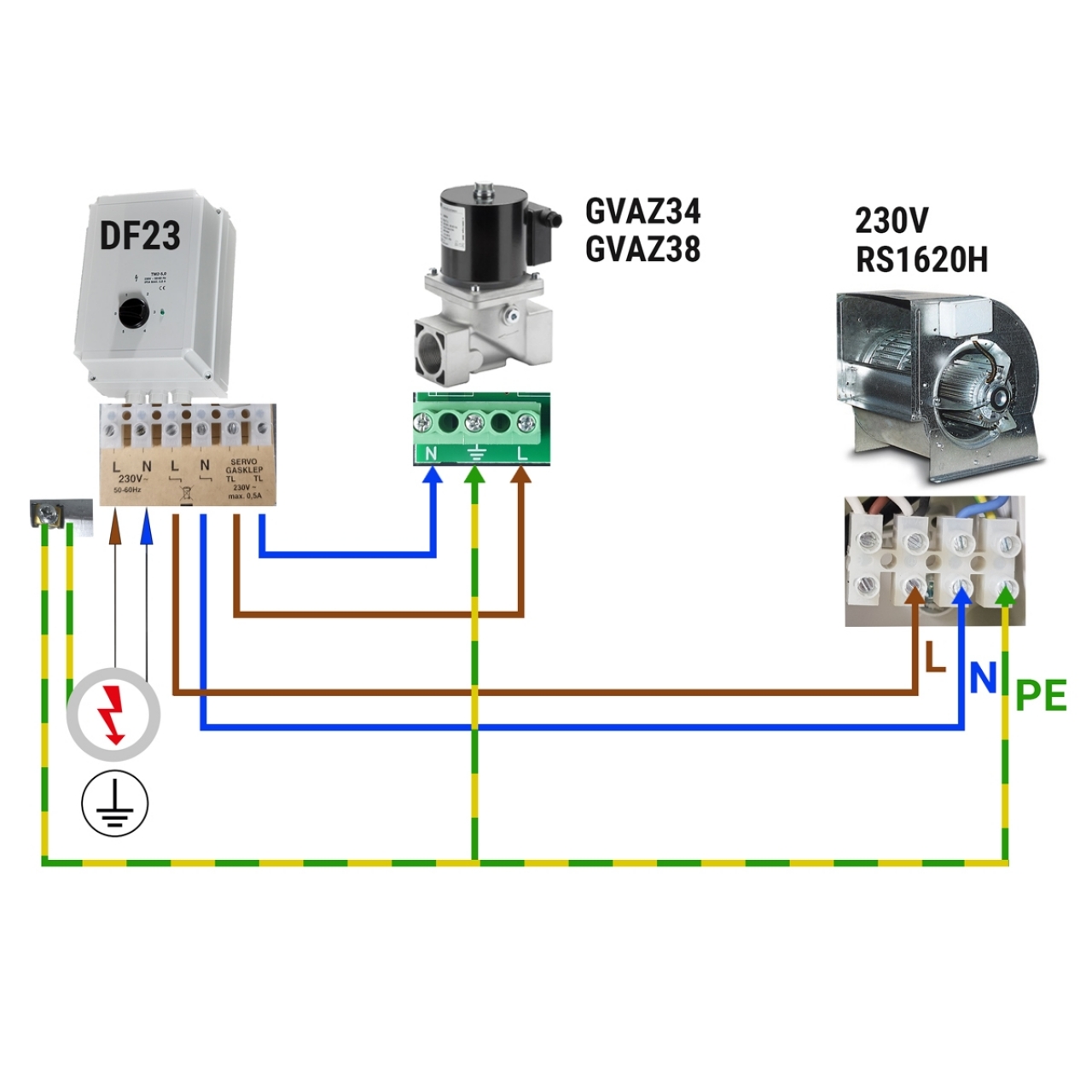

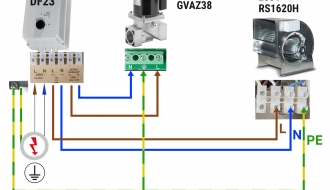

- Electric connection: 230 Volt / 1 L / 50 Hz
Dimensions
- External dimensions W x D x H: 320 x 318 x 342 mm
Guidelines
- ErP Guideline 2015
- Produced according hygiene and safety requirements
- EU, CE and the product has been produced in accordance
- Material corresponds to the European Food Product Standards
Dimensions
| Width | 320 mm |
|---|---|
| Depth | 318 mm |
| Height | 342 mm |

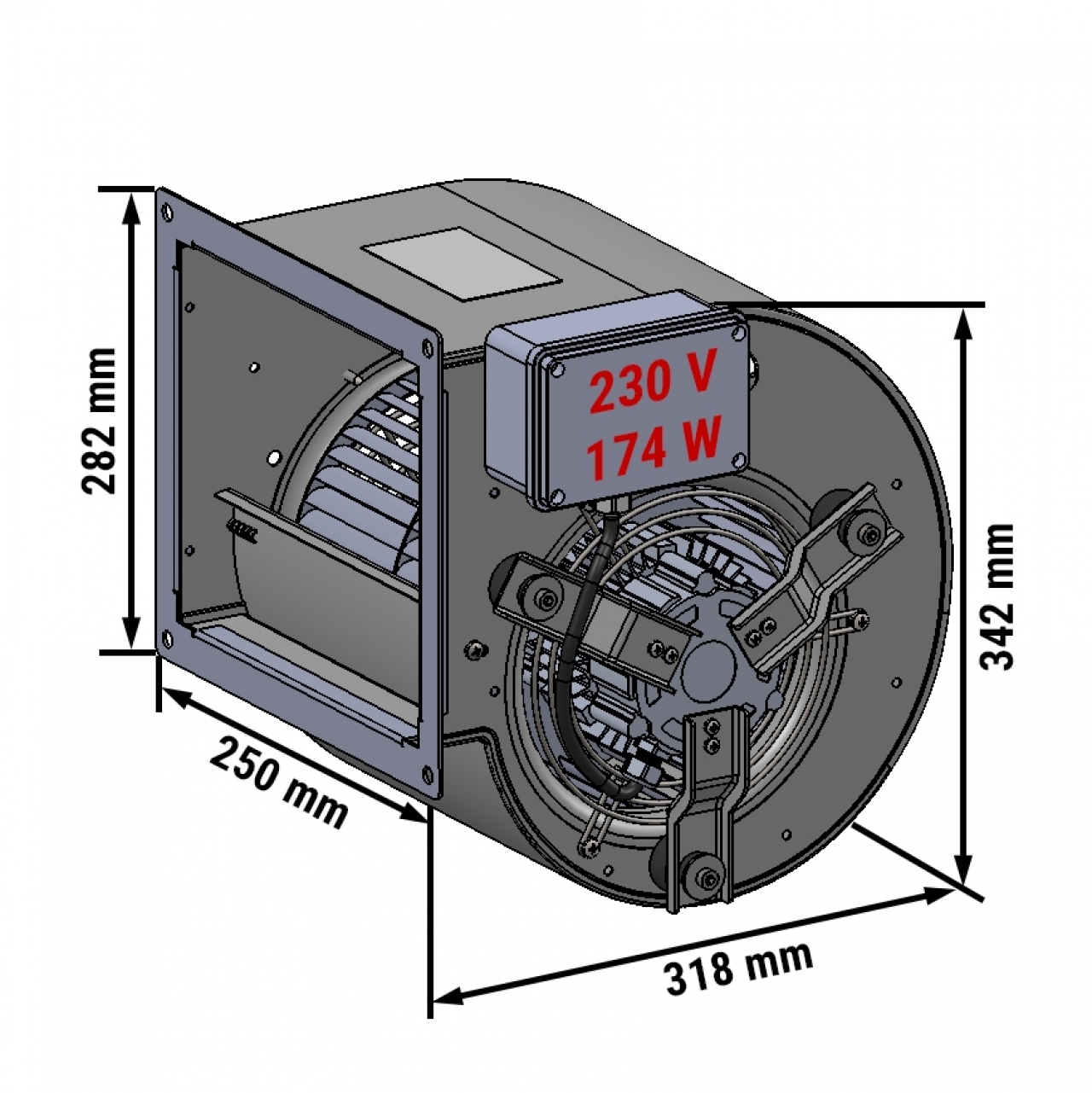

Sizes for the drawing
| A | 320 mm |
|---|---|
| B | 340 mm |
| C | 250 mm |
| D | 280 mm |
| E | 45 mm |
| F | 230 mm |
| G | 210 mm |
| H | 186 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air outlet dimensions | 200 mm |
| Air turnover per hour | 1300 m³/h |
| Temperature | -20 °C to +40 °C |
Connected loads
| Output | 147 watt |
|---|---|
| Voltage | 230 volt |
| Frequency | 50 Hz |
| Current | 1,5 amp |
| Phases | 1 |
Delivery
| Shipping type | parcel |
|---|---|
| Delivery condition | assembled |
| Weight | 9 kg |
Lisäinformaatio
DAIN 7/7 XPL MTR 4P 147 W 1V IP 55 + GR +FLLiittyvät tuotteet
