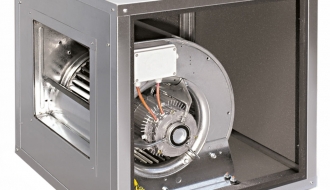

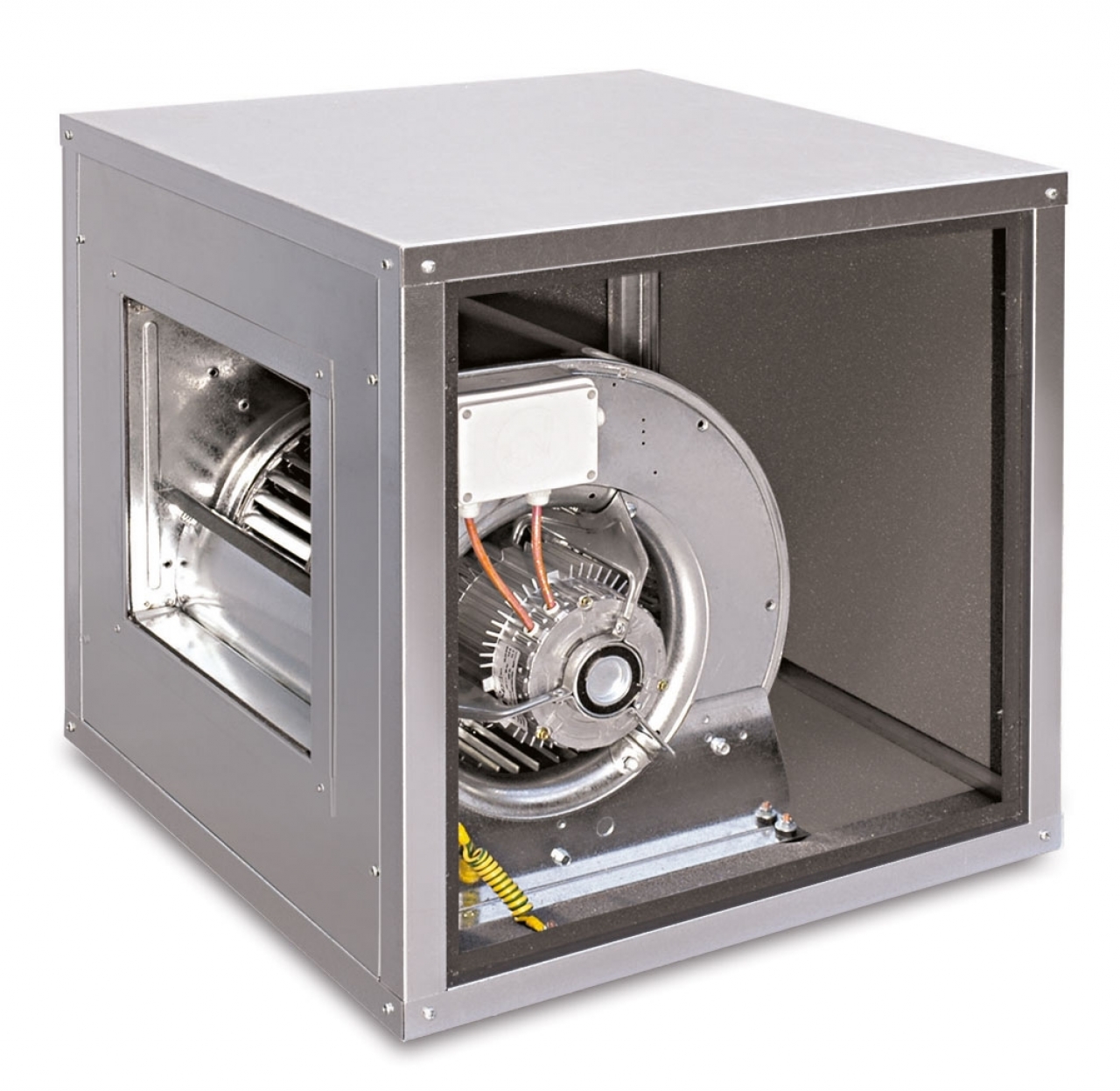

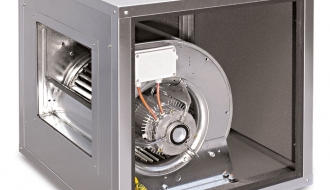

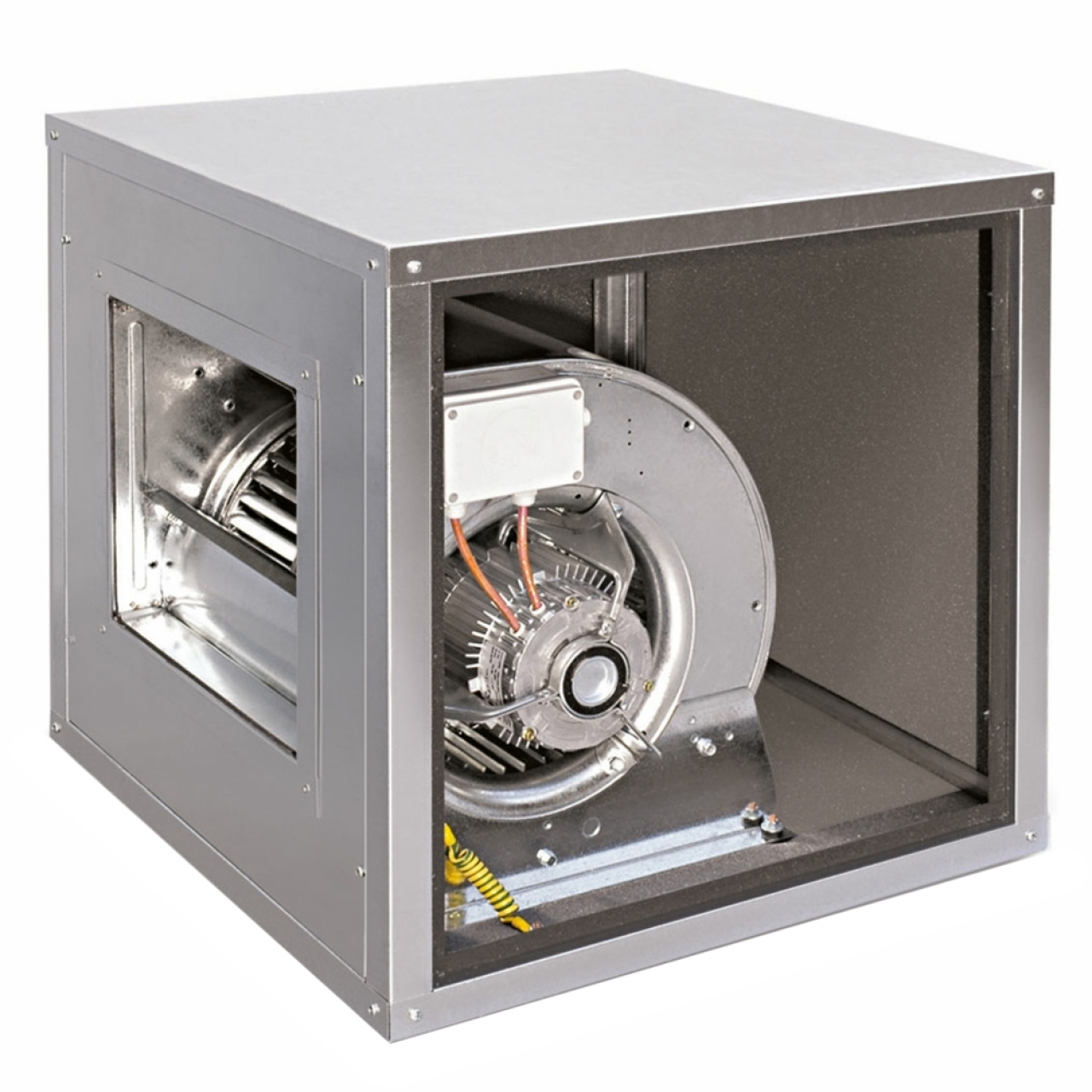

Airbox 5000 m³ per hour
Tuotekoodi: SKUAC5000
Tavaran paino: 53kg

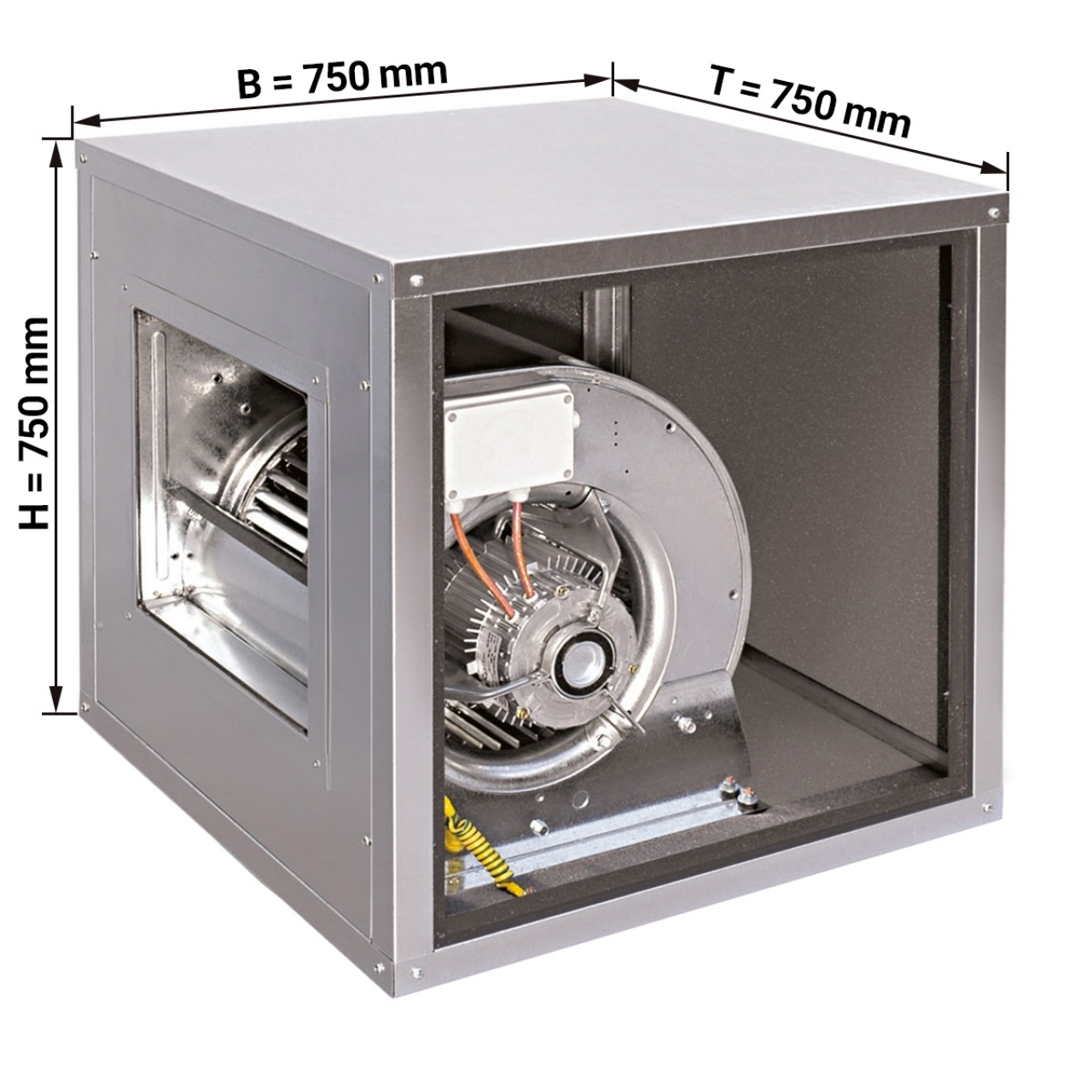

Mitat: B 750 x T 750 x H 750 mm
Varastossa
-
+
Lisää koriinKysy hintaa
Design
- Motor power 5000 m³

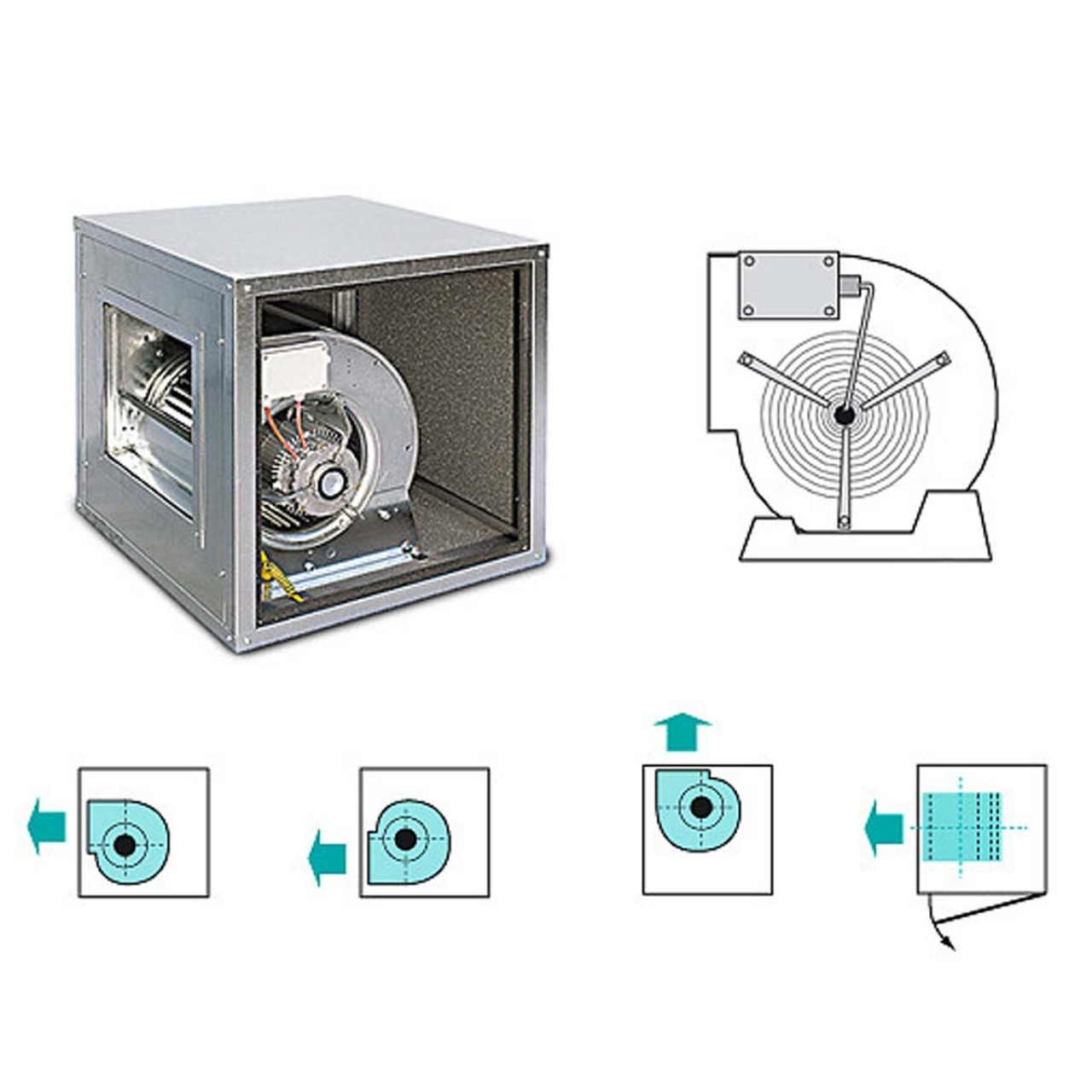

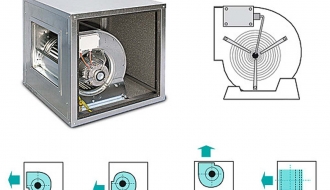

- Square air outlet
- Optimal performance with low electricity consumption
- Environmentally-friendly
- Easy to clean
Quality
- Aluminium profile frame
- Low-noise and weather-proof covering
- Reduction of heat and noise
Technology
- Motor connected directly with the impeller
- Very resistent and durable
Connection:
- Output:560 Watt
- Electric connection: 230 Volt / 1 L / 50 Hz

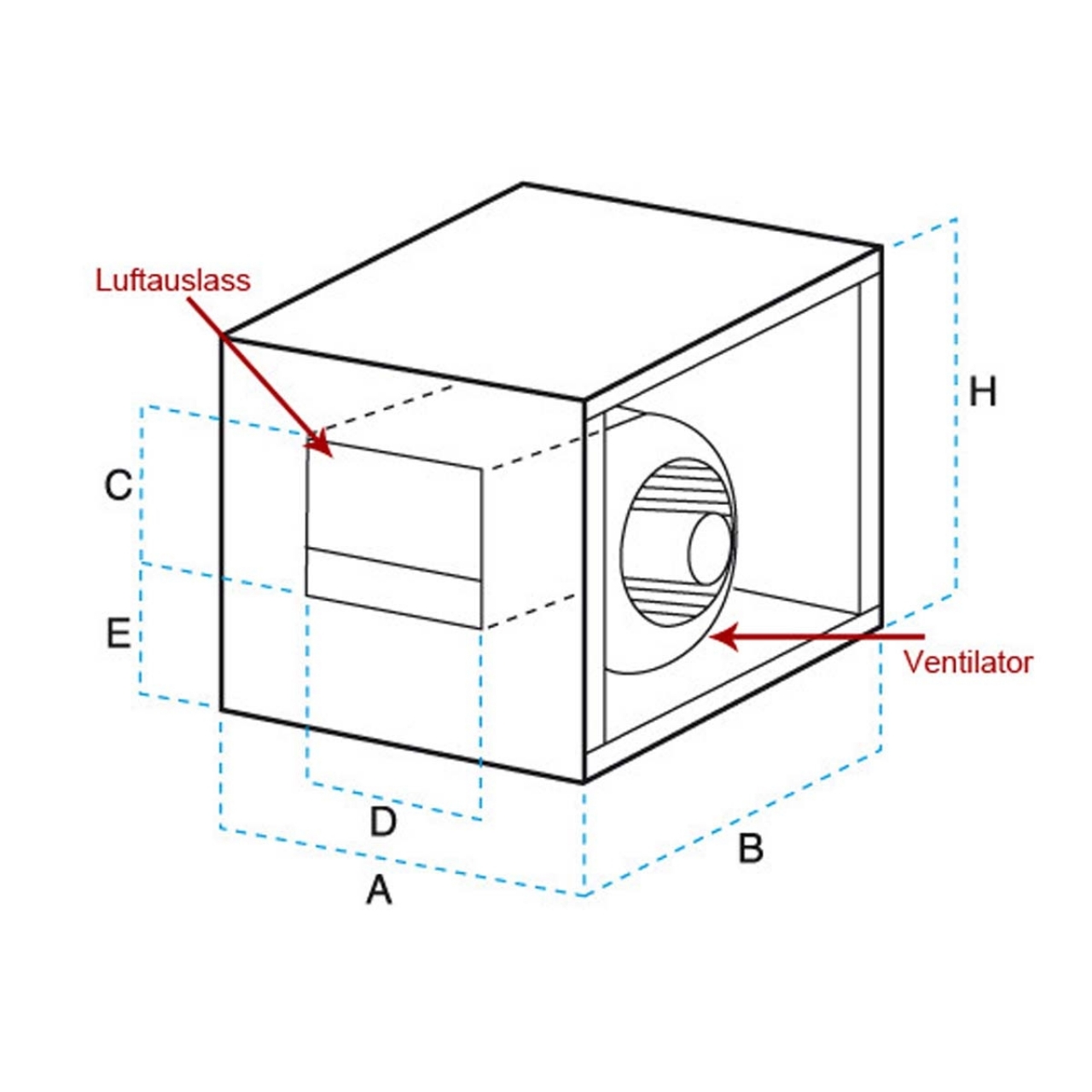

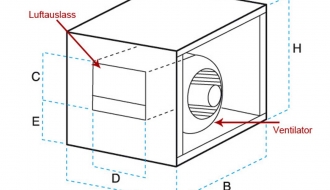

Dimensions
- External dimensions W x D x H: 750 x 750 x 750 mm
Guidelines
- ErP Guideline 2018
- Produced according hygiene and safety requirements
- EU, CE and the product has been produced in accordance
Note

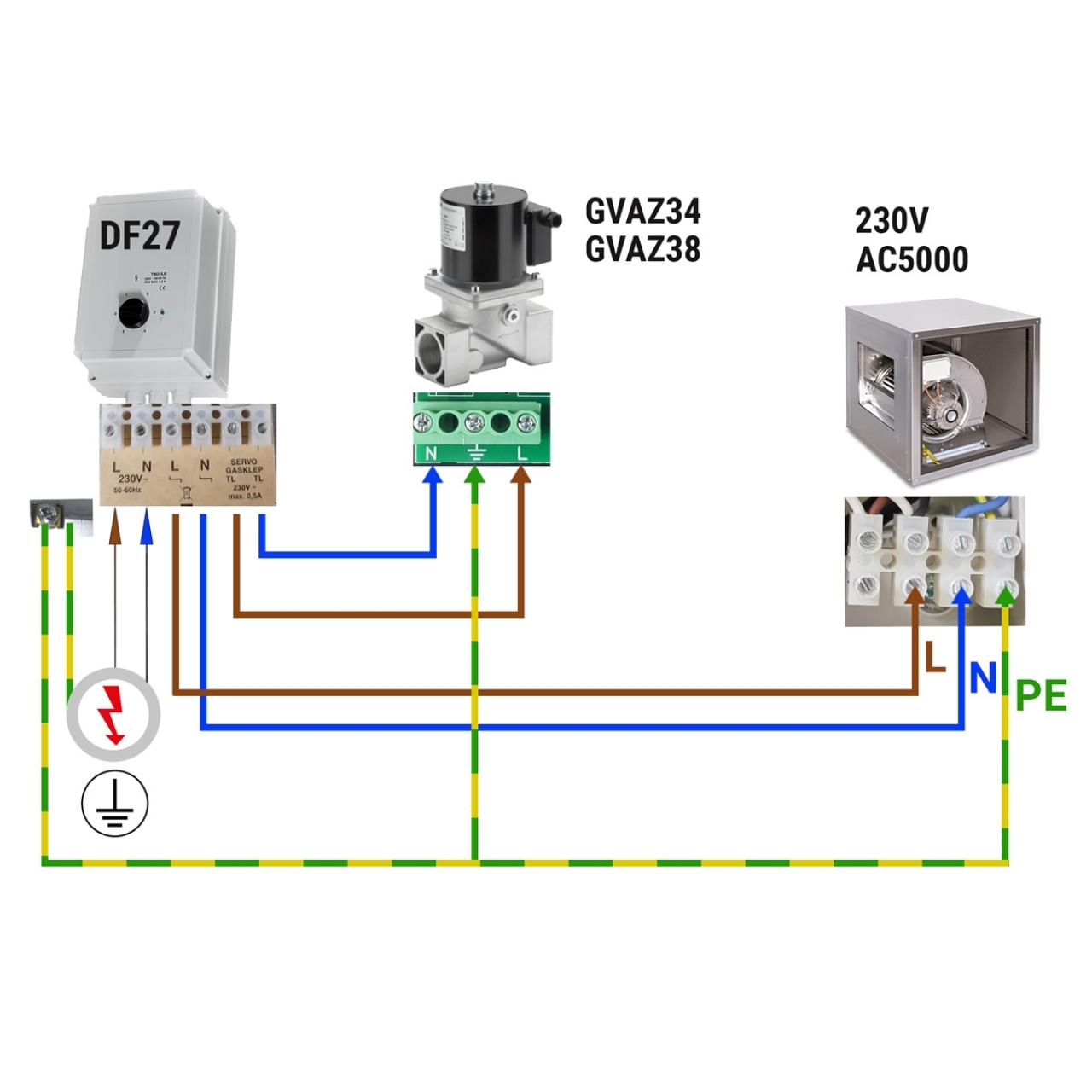

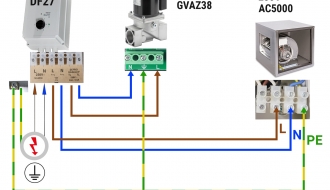

- IMPORTANT: to avoid motor failure, it is important to connect the existing thermal contact to the speed controller. A fault due to an unconnected thermal contact is not covered by the warranty.
Dimensions
| Width | 750 mm |
|---|---|
| Depth | 750 mm |
| Height | 750 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air turnover per hour | 5000 m³/h |
Connected loads
| Output | 560 watt |
|---|---|
| Voltage | 230 volt |
| Frequency | 50 Hz |
| Current | 5,4 amp |
| Phases | 1 |
Delivery
| Shipping type | forwarding agency |
|---|---|
| Delivery condition | assembled |
| Weight | 53 kg |
Lisäinformaatio
MCK 12/12 X18 2011009 1F 6P 1VLiittyvät tuotteet
