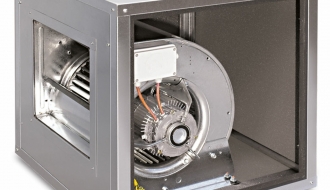

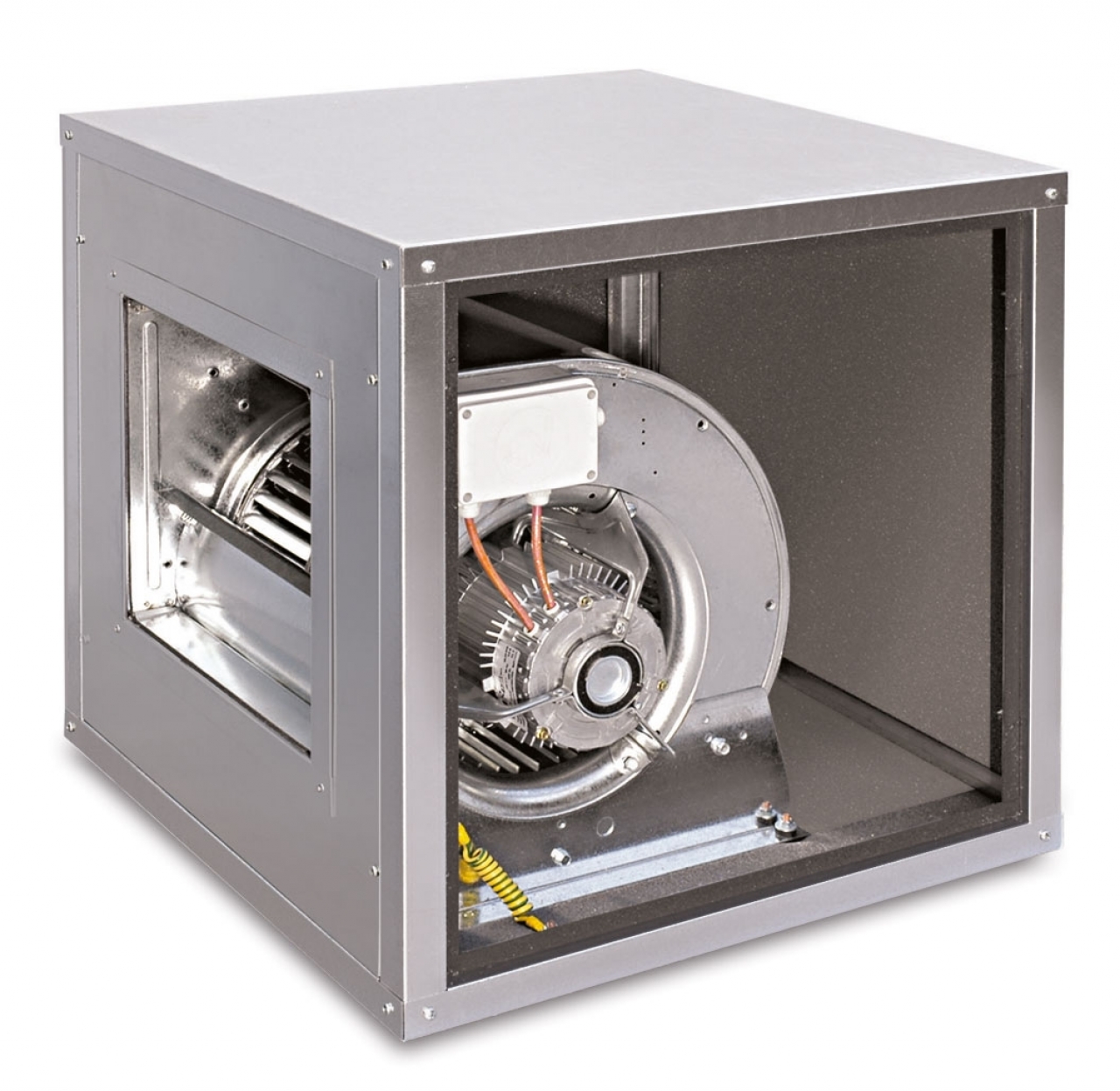

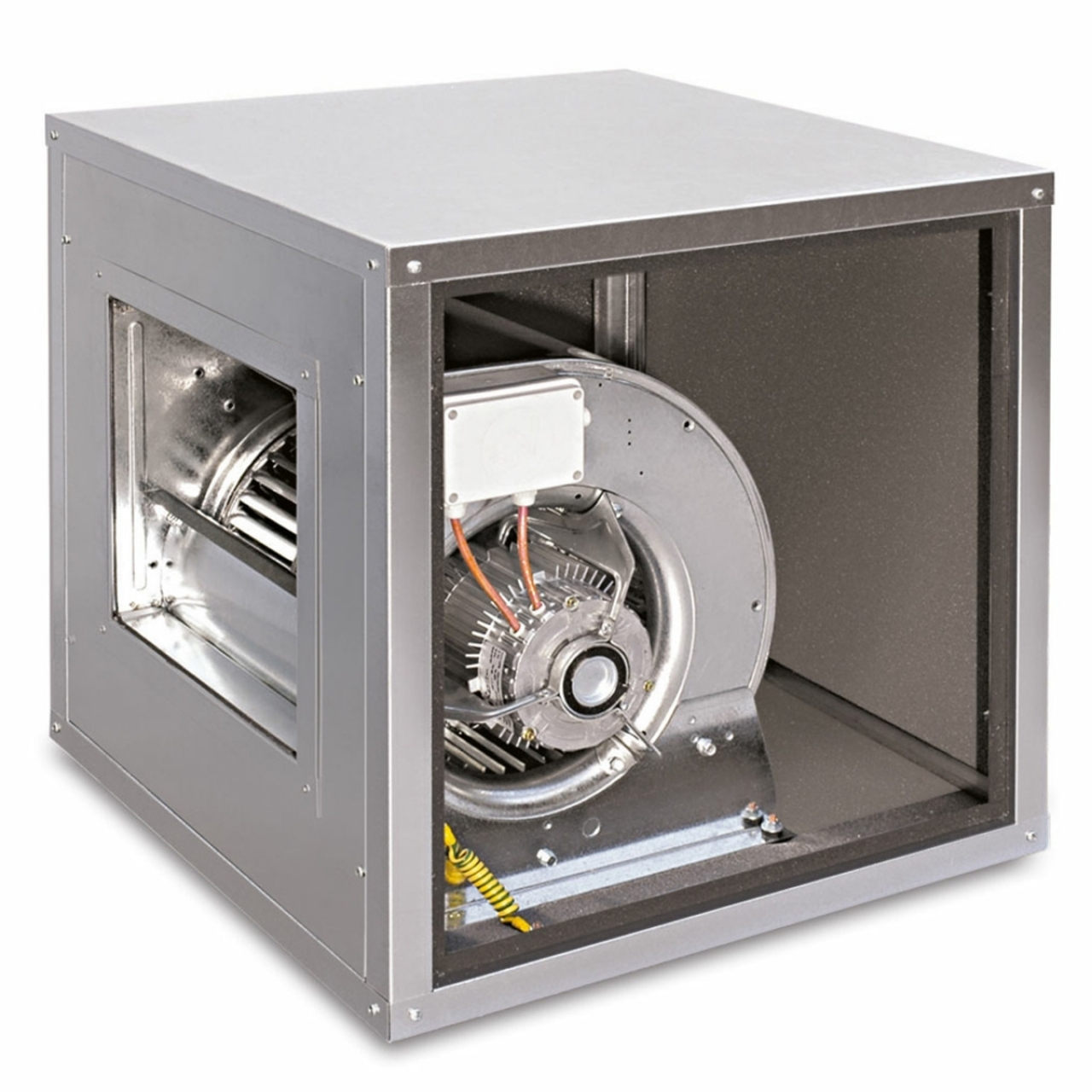

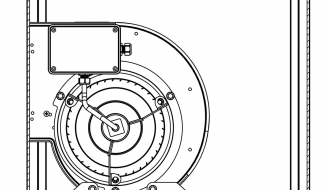

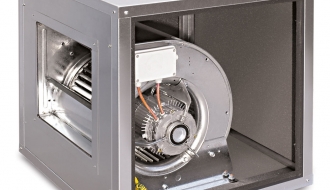

Airbox 1600 m³ per hour
Tuotekoodi: SKUAC1600
Tavaran paino: 24kg
Mitat: B 500 x T 500 x H 500 mm
Varastossa
-
+
Lisää koriinKysy hintaa
Design
- Motor power 1600 m³

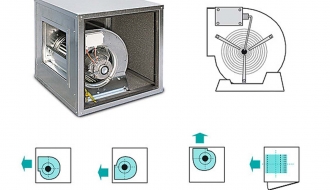

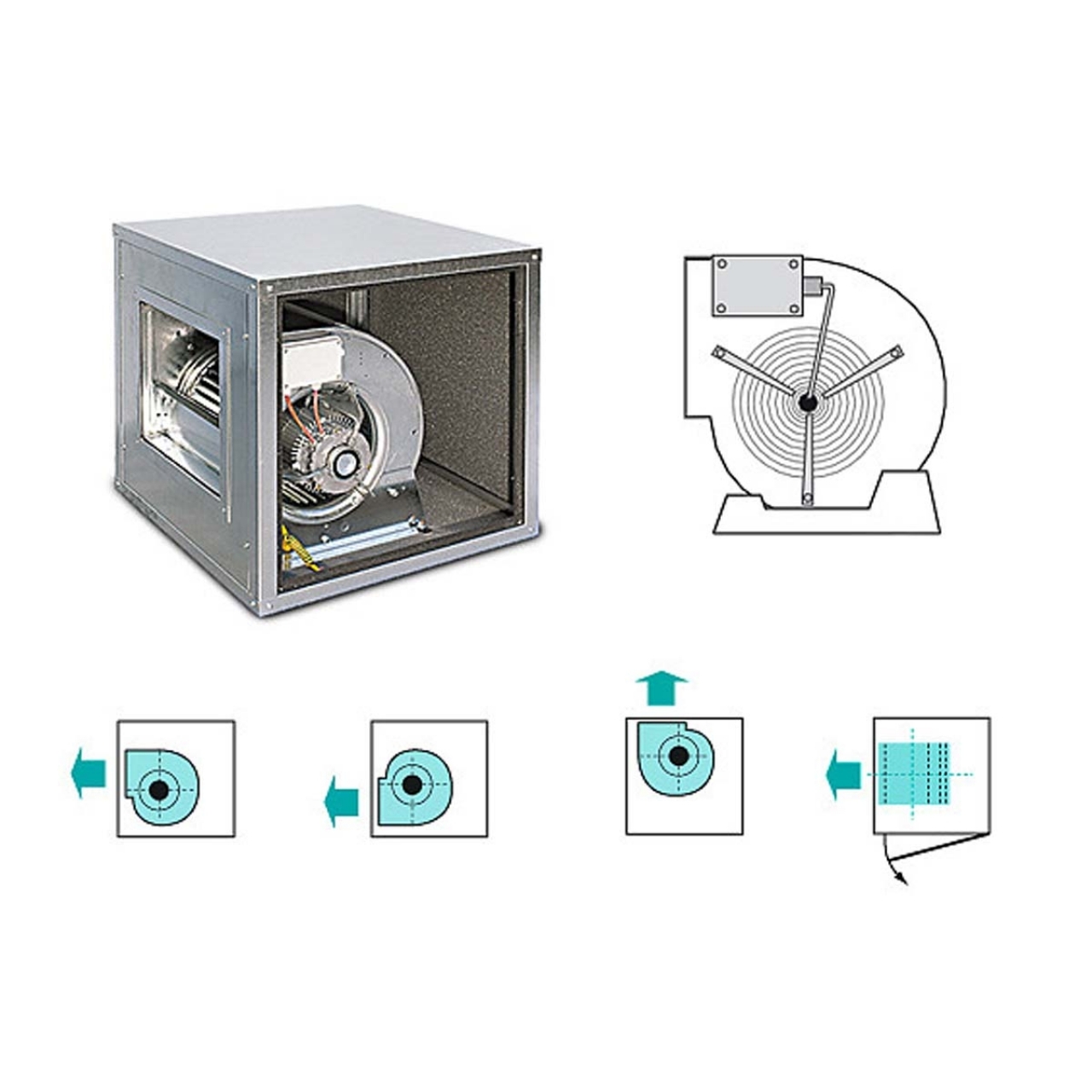

- Square air outlet
- Optimal performance with low electricity consumption
- Easy to clean
- Environmentally-friendly
Quality
- Aluminium profile frame
- Low-noise and weather-proof covering
- Reduction of heat and noise
Technology
- Motor connected directly with the impeller
- Very resistent and durable
Connection:
- Output:120 Watt
- Electric connection: 230 Volt / 1 L / 50 Hz

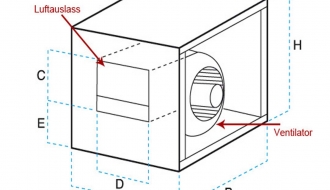

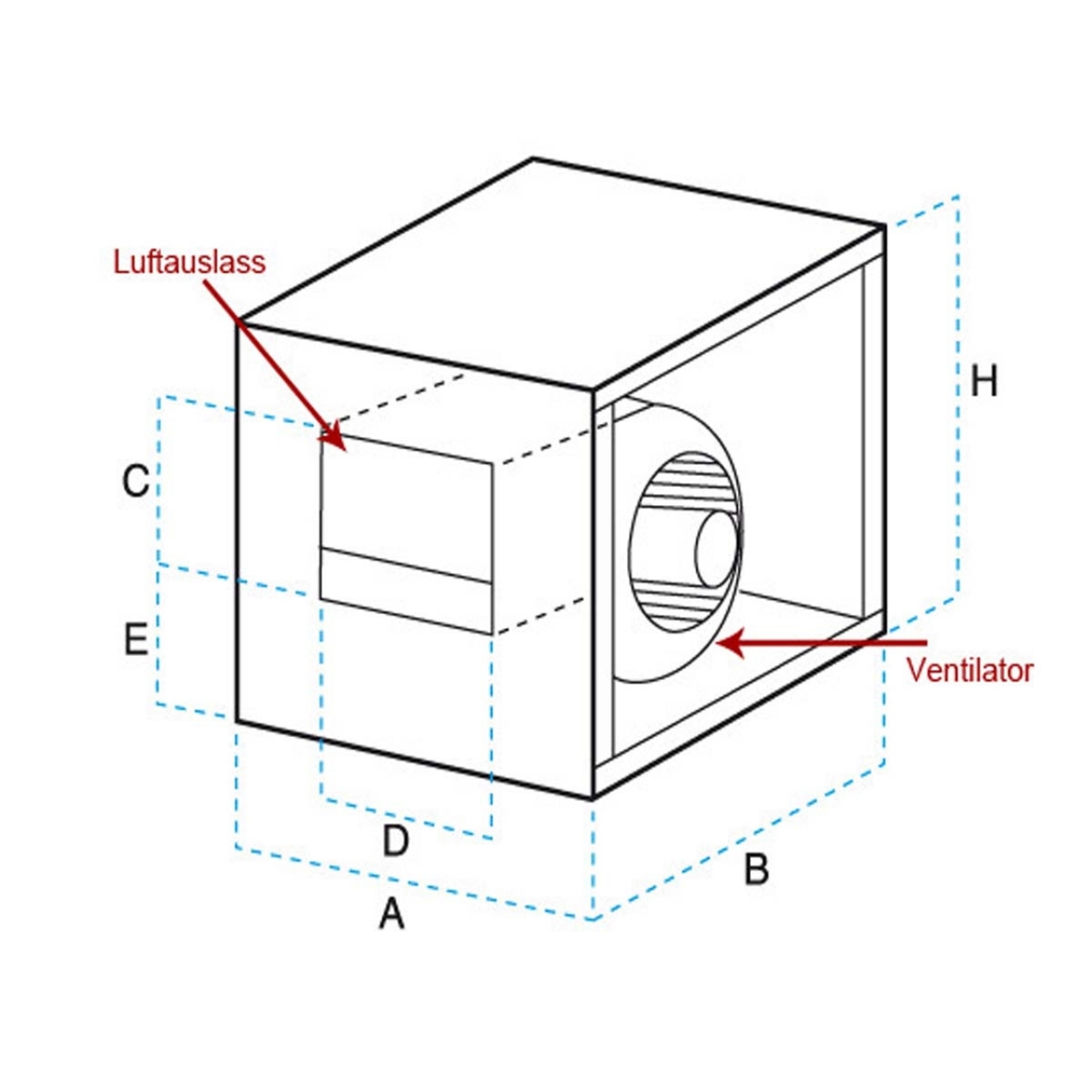

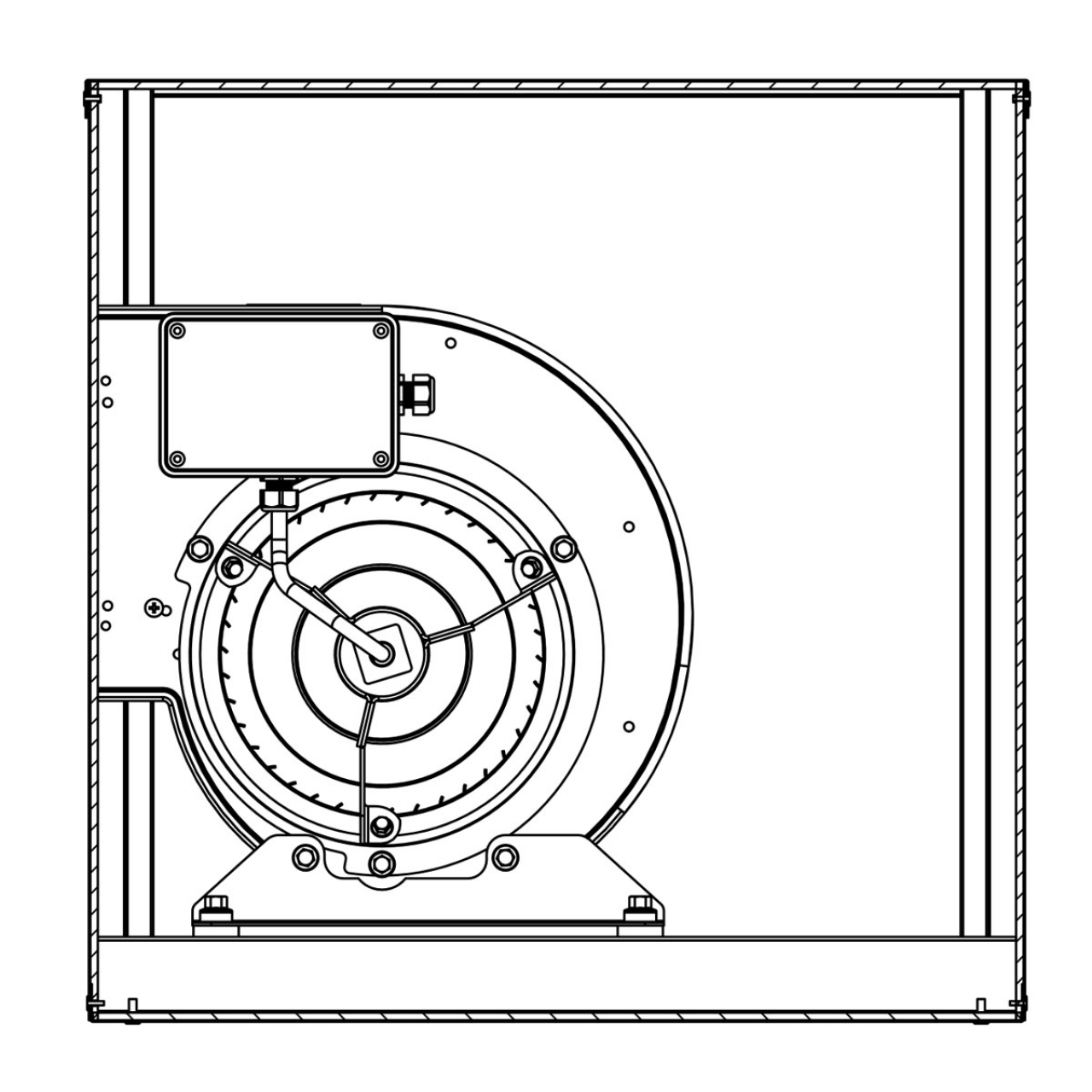

Dimensions
- External dimensions W x D x H: 500 x 500 x 500 mm
Guidelines
- ErP Guideline 2018
- Produced according hygiene and safety requirements
- EU, CE and the product has been produced in accordance
Note

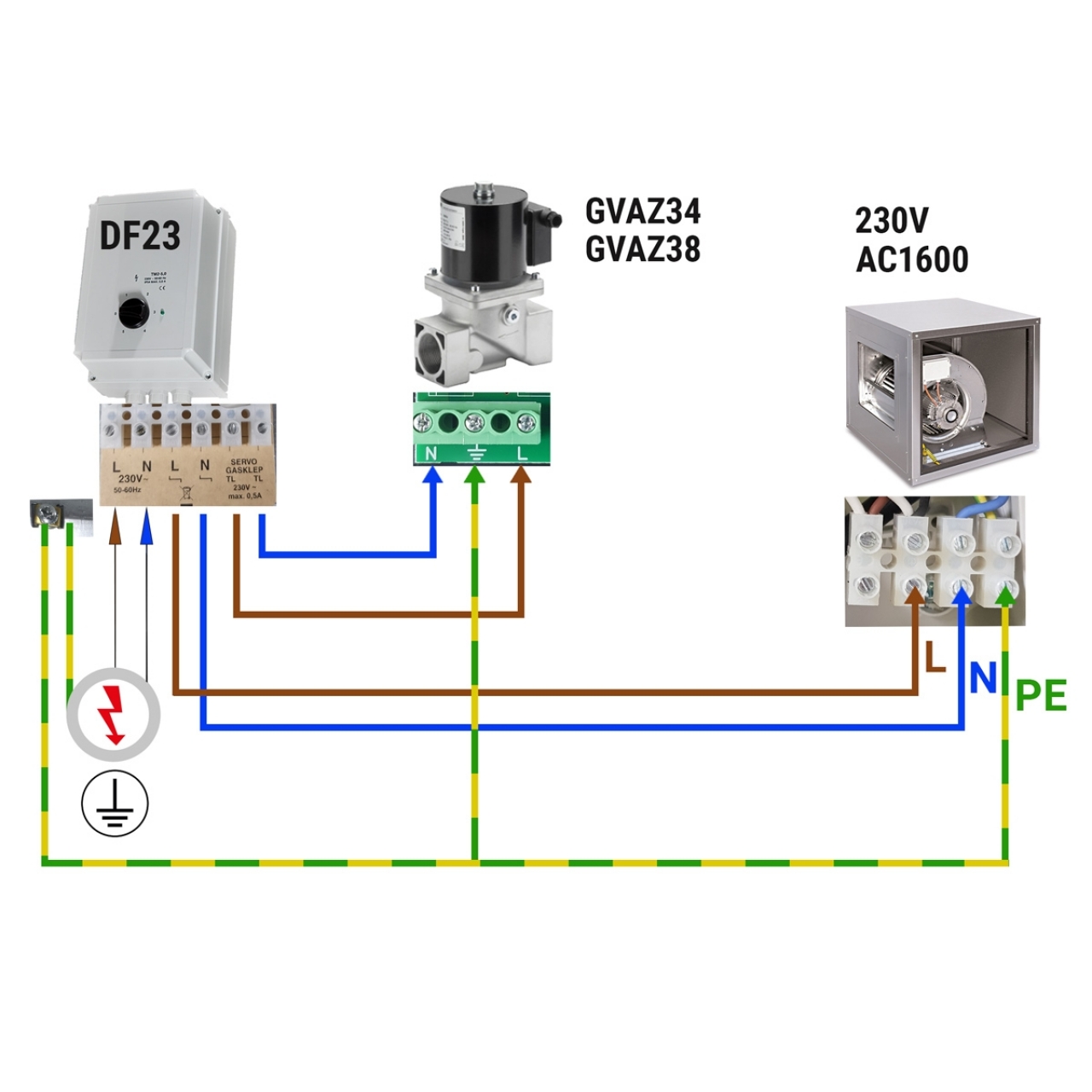

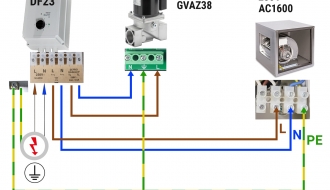

- IMPORTANT: to avoid motor failure, it is important to connect the existing thermal contact to the speed controller. A fault due to an unconnected thermal contact is not covered by the warranty.
Dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
| Height | 500 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air turnover per hour | 1600 m³/h |
Connected loads
| Output | 120 watt |
|---|---|
| Voltage | 230 volt |
| Frequency | 50 Hz |
| Current | 3,8 amp |
| Phases | 1 |
Delivery
| Shipping type | forwarding agency |
|---|---|
| Delivery condition | assembled |
| Weight | 24 kg |
