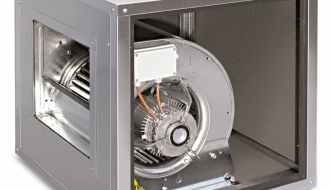

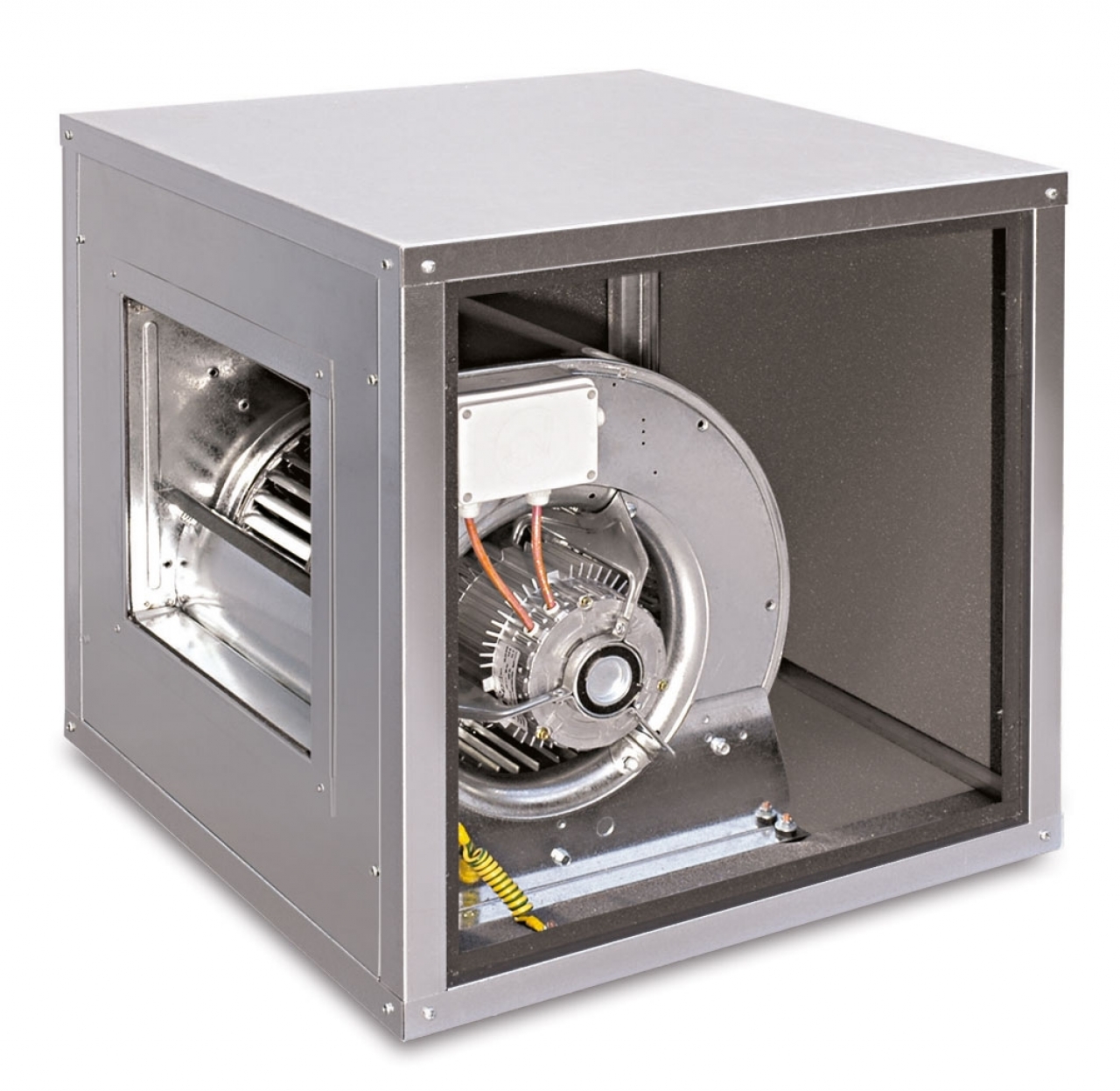

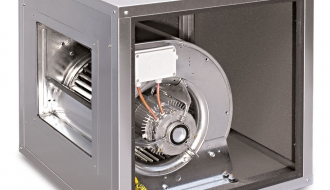

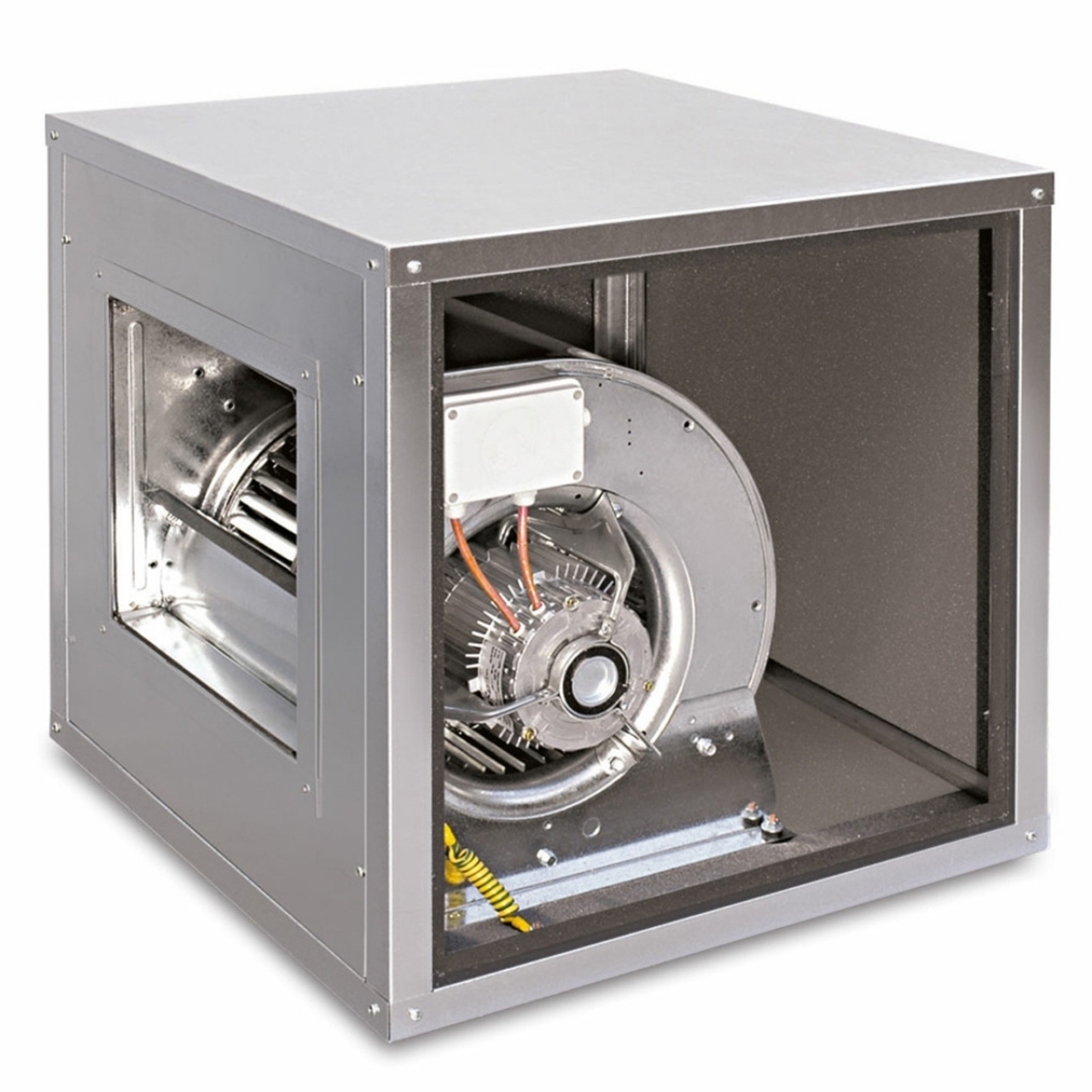

Airbox 3500 m³ per hour
Tuotekoodi: SKUAC3500
Tavaran paino: 33kg
Mitat: B 600 x T 600 x H 600 mm
Varastossa
-
+
Lisää koriinKysy hintaa
Design

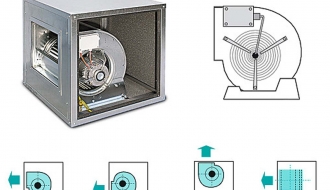

- Motor power 3500 m³

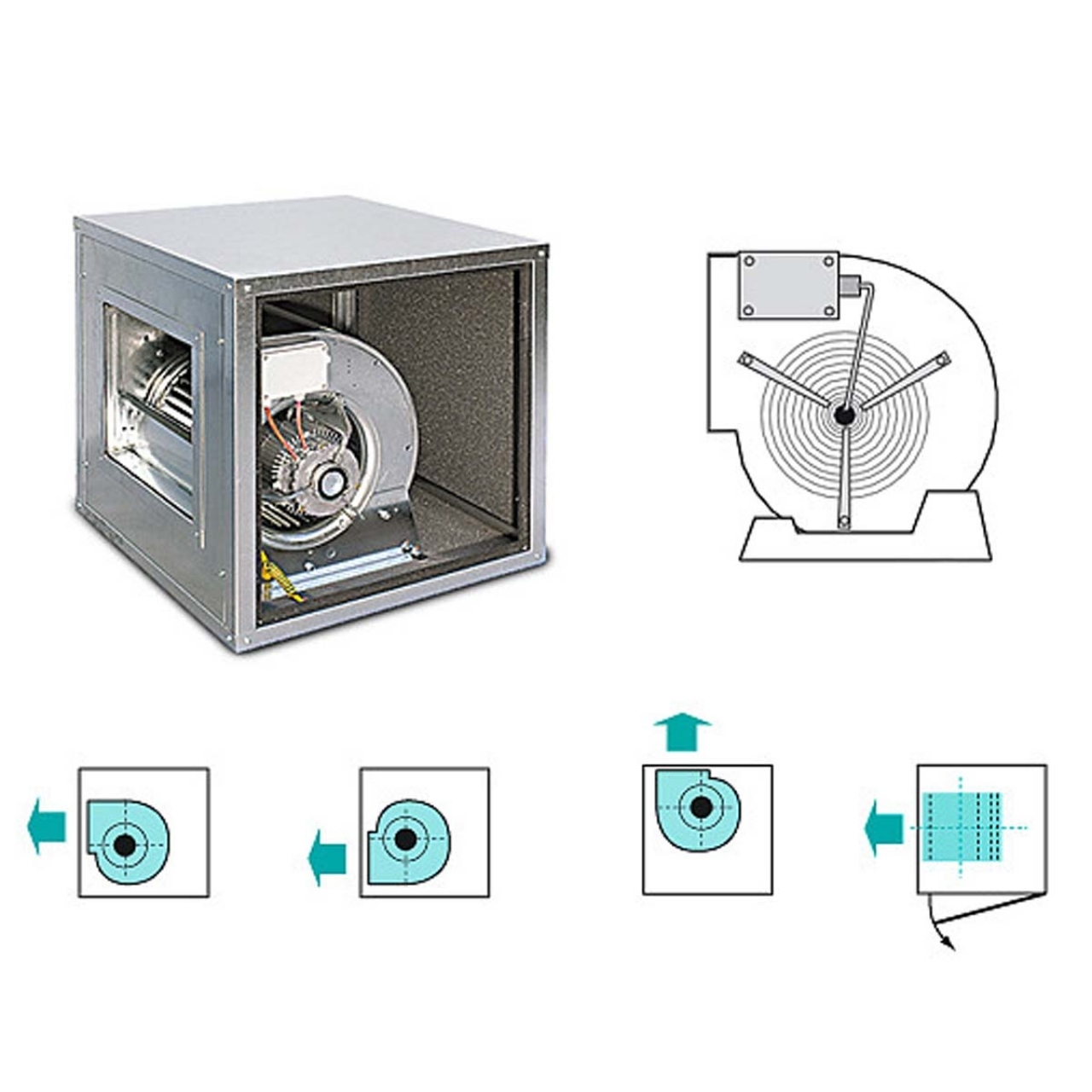

- Square air outlet
- Optimal performance with low electricity consumption
- Easy to clean
- Environmentally-friendly
Quality
- Aluminium profile frame
- Low-noise and weather-proof covering
- Reduction of heat and noise
Technology

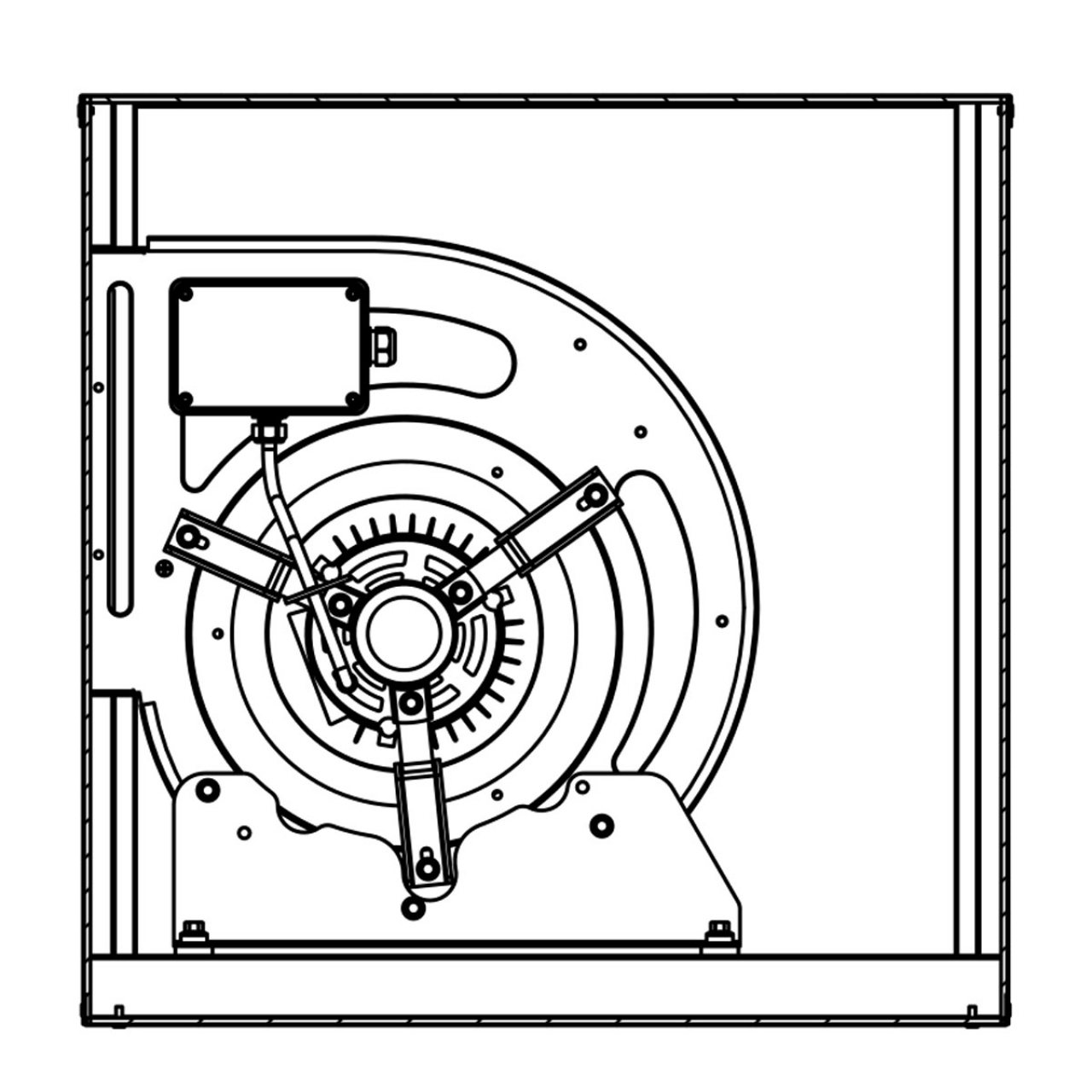

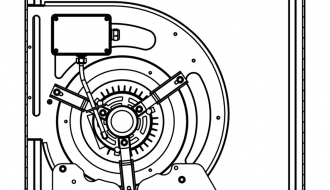

- Motor connected directly with the impeller
- Very resistent and durable
Connection:
- Output:550 Watt
- Electric connection: 230 Volt / 1 L / 50 Hz

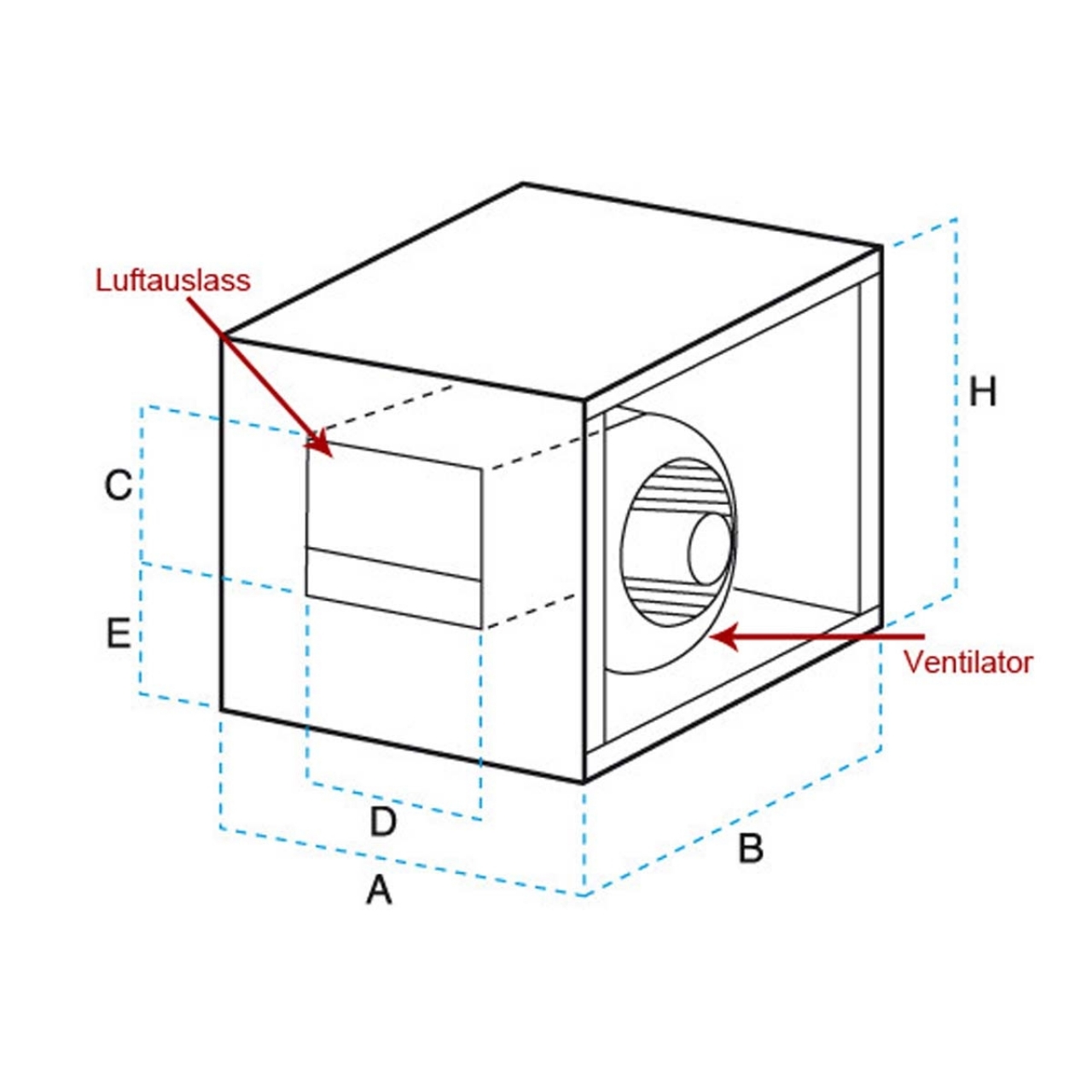

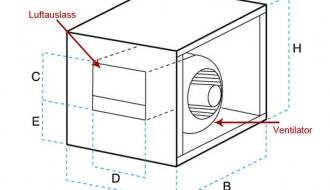

Dimensions

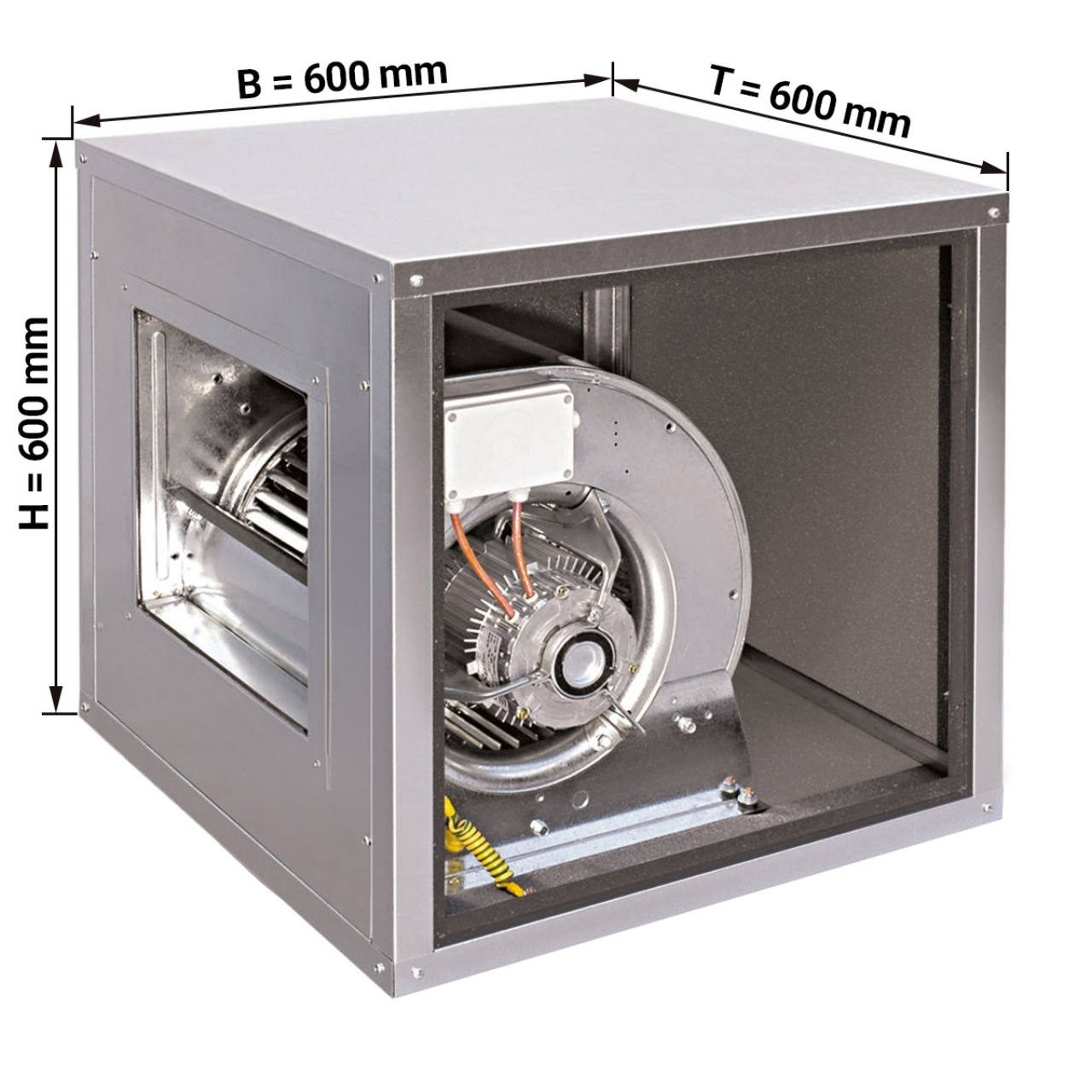

- External dimensions W x D x H: 600 x 600 x 600 mm
Guidelines
- ErP Guideline 2018
- Produced according hygiene and safety requirements
- EU, CE and the product has been produced in accordance
Note

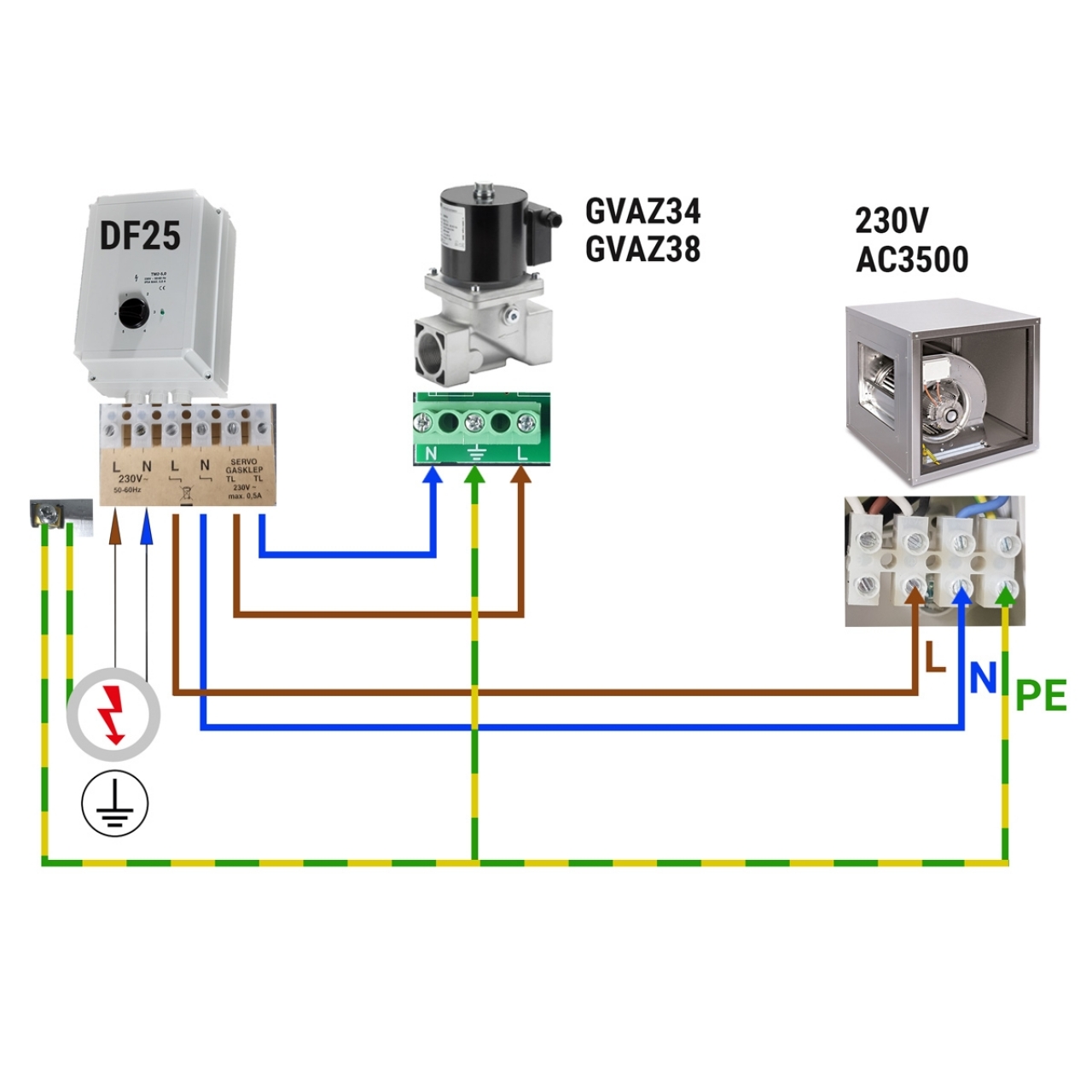

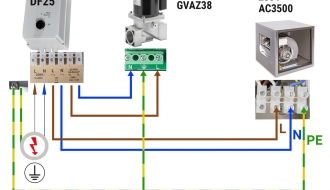

- IMPORTANT: to avoid motor failure, it is important to connect the existing thermal contact to the speed controller. A fault due to an unconnected thermal contact is not covered by the warranty.
Dimensions
| Width | 600 mm |
|---|---|
| Depth | 600 mm |
| Height | 600 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air turnover per hour | 3500 m³/h |
Connected loads
| Output | 550 watt |
|---|---|
| Voltage | 230 volt |
| Current | 3,8 amp |
| Frequency | 50 Hz |
| Phases | 1 |
Delivery
| Shipping type | forwarding agency |
|---|---|
| Delivery condition | assembled |
| Weight | 33 kg |
Lisäinformaatio
MCK 10/8 X18 2011018 1F 4P 1VLiittyvät tuotteet
