Design

• Protection type IP 23
• With lighting
• Condensation water drain
• Condensation drainage connection
• Electronic control
• To the outside
• With heating
• Connection for pre-filled coolant lines
• Door contact switch - high pressure switch and remote control panel
• Self-supporting housing (galvanised powder-coated sheet)
• Hermetically compressor with thermal winding protection
• Heat exchanger with copper piping and aluminium lamella
• Particularly hygienic due to easy cleaning

Quality

• Long service life
• High quality split unit
• High precision and stability
• Compact chiller unit as split device
• Quality product made in Europe

Insulation

• Corresponding to the EU guidelines (Halon regulations)
• Particularly energy-efficient due to the insulation at the top
• Top-quality insulation values through the use of polyurethane

Refrigeration

• With refrigerant
• Temperature: -15 °C to -25 °C
• Maximum room volume: 15,3 m³
• Refrigerant: R404A / 2090 g
• Air cooled condensers
• Ambient air temperatures up to +43 °C
• Strong and consistent cooling
• Automatic defrosting can be programmed by a regulator

Connection:

• Compressor output: 1428 W
• Electric connection: 400 V / 50 Hz

Dimensions

• Outer dimension of the refrigeration unit W x D x H: 650 x 390 x 840 mm
• Outer dimension of the vaporiser W x D x H: 944 x 402 x 350 mm

scope of supply

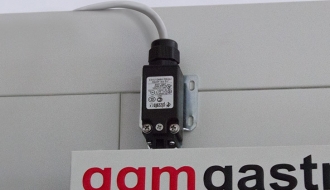

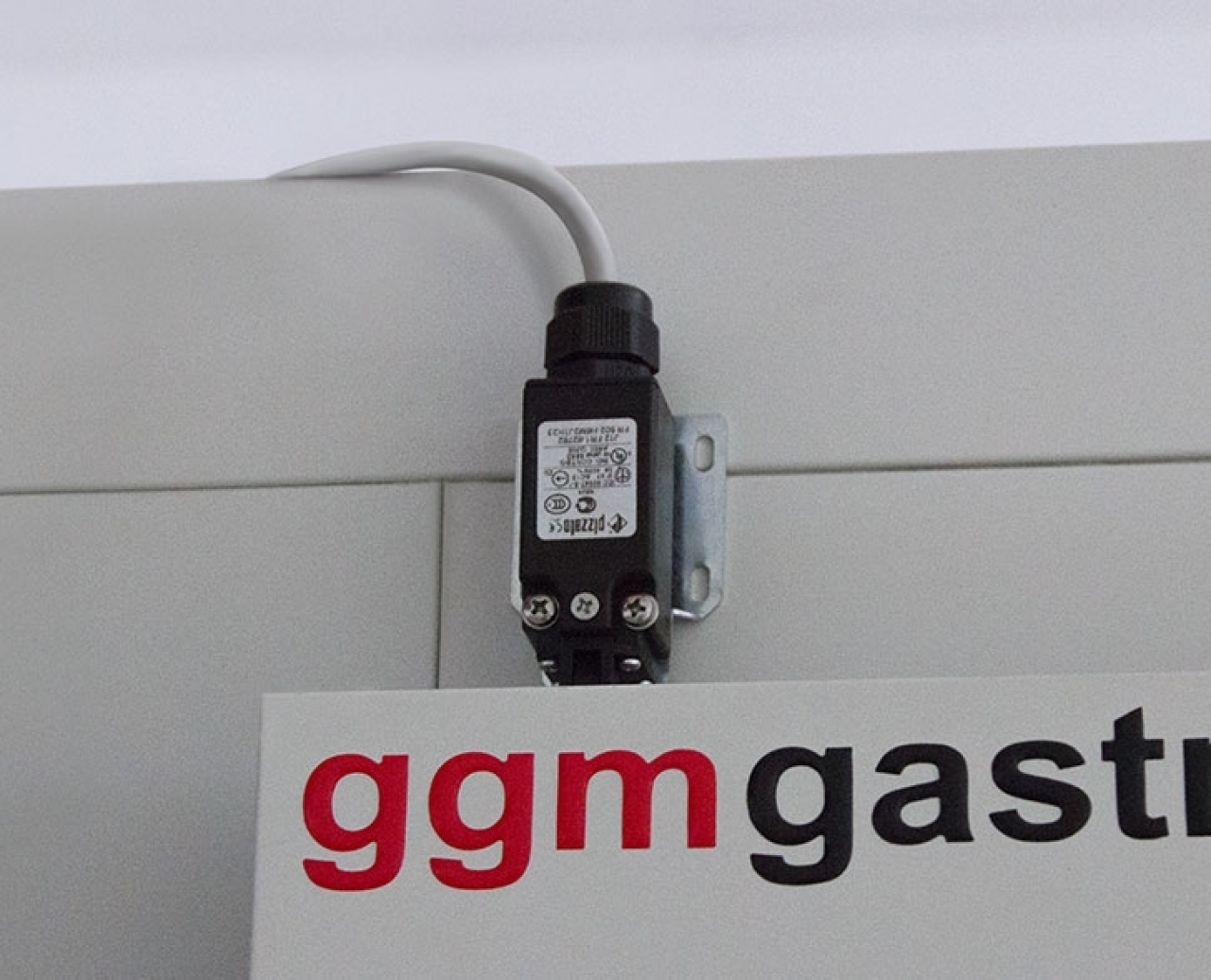

• Including contact switch
• Includes the interior lighting for the cooling room

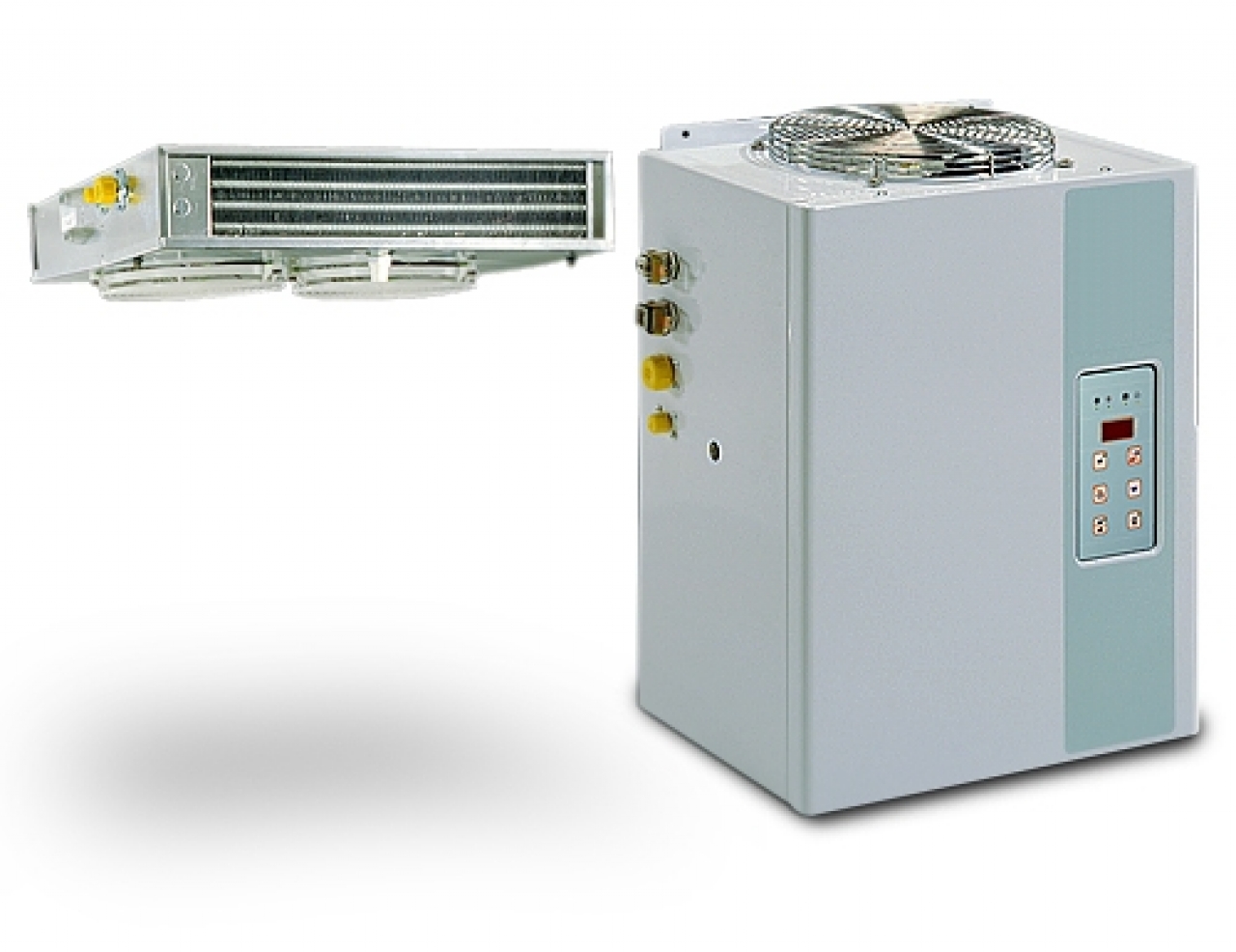

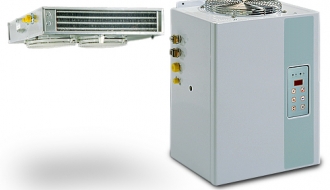

• Refrigeration unit and vaporiser
• 5 m Piping
• Refrigerant

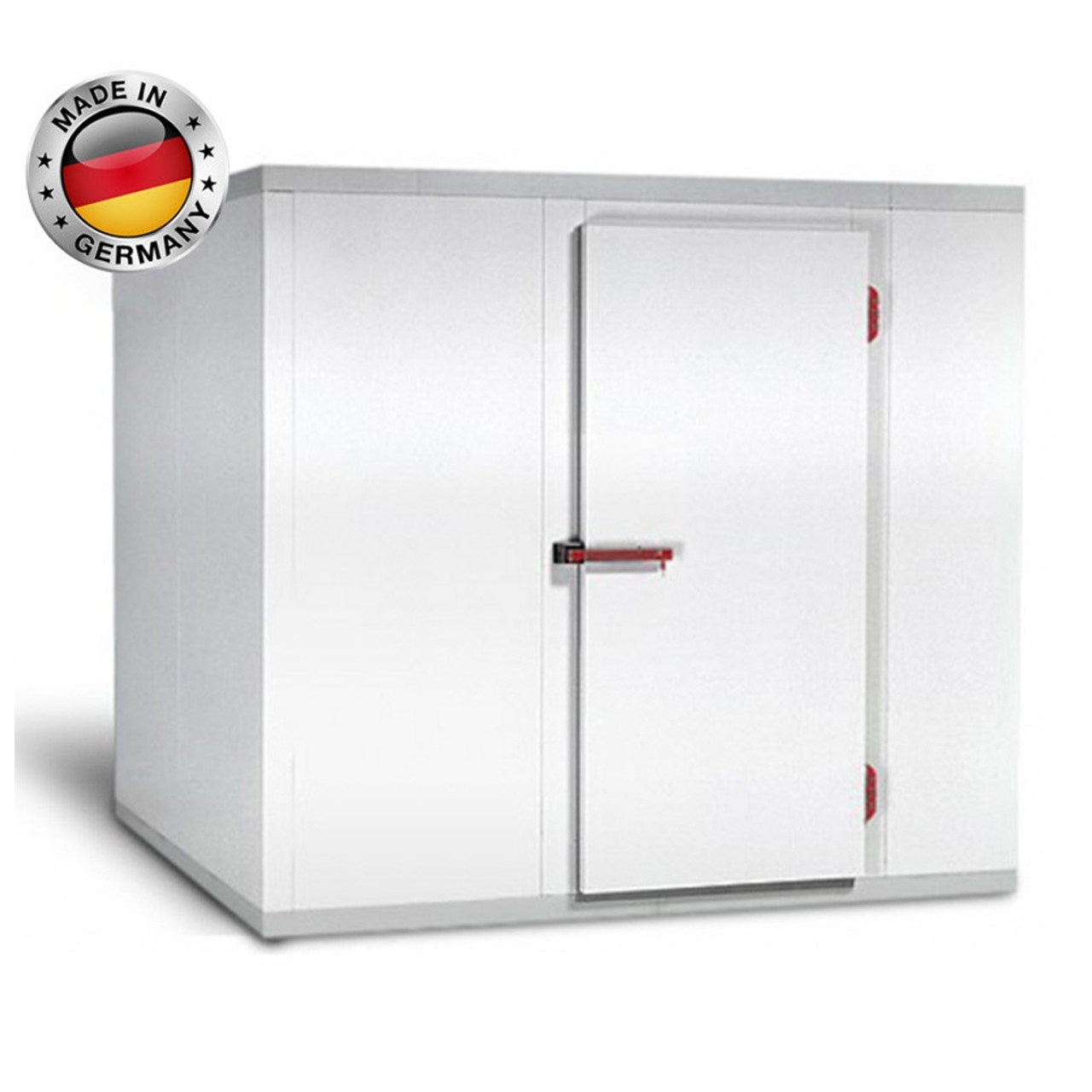

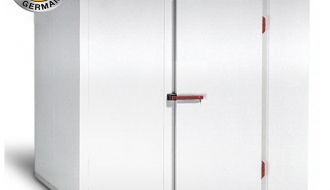

• Supplied without refrigeration cell

Note

• The refrigeration cell must be ordered separately
• Winter equipment for outdoor use available subject to a surcharge

Guidelines

• Produced according hygiene and safety requirements
• Meets CE,EU standards ISO 9001 (international TÜV certificate)
• Material corresponds to the European Food Product Standards

OPTIONAL ACCESSORIES:

• TC series refrigeration cell
