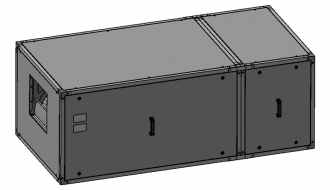

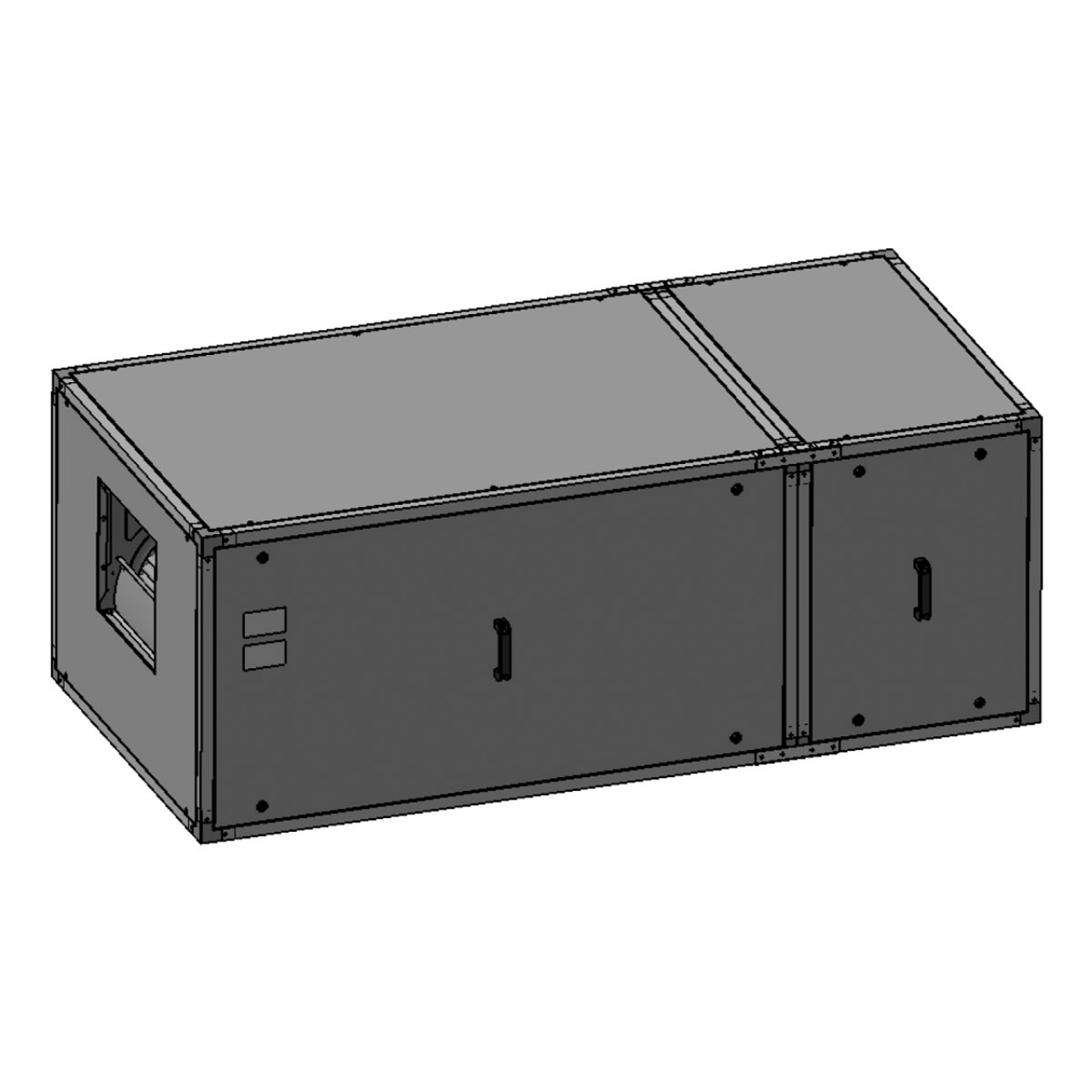

Abluftreinigungsanlage 5400 m³ - mit Vor-, Taschen- & Aktivkohlefilter | Luftreiniger | Küchenabluft | Abluft | Lüfter
Tuotekoodi: SKUAMC5400VTA
Tavaran paino: 286kg

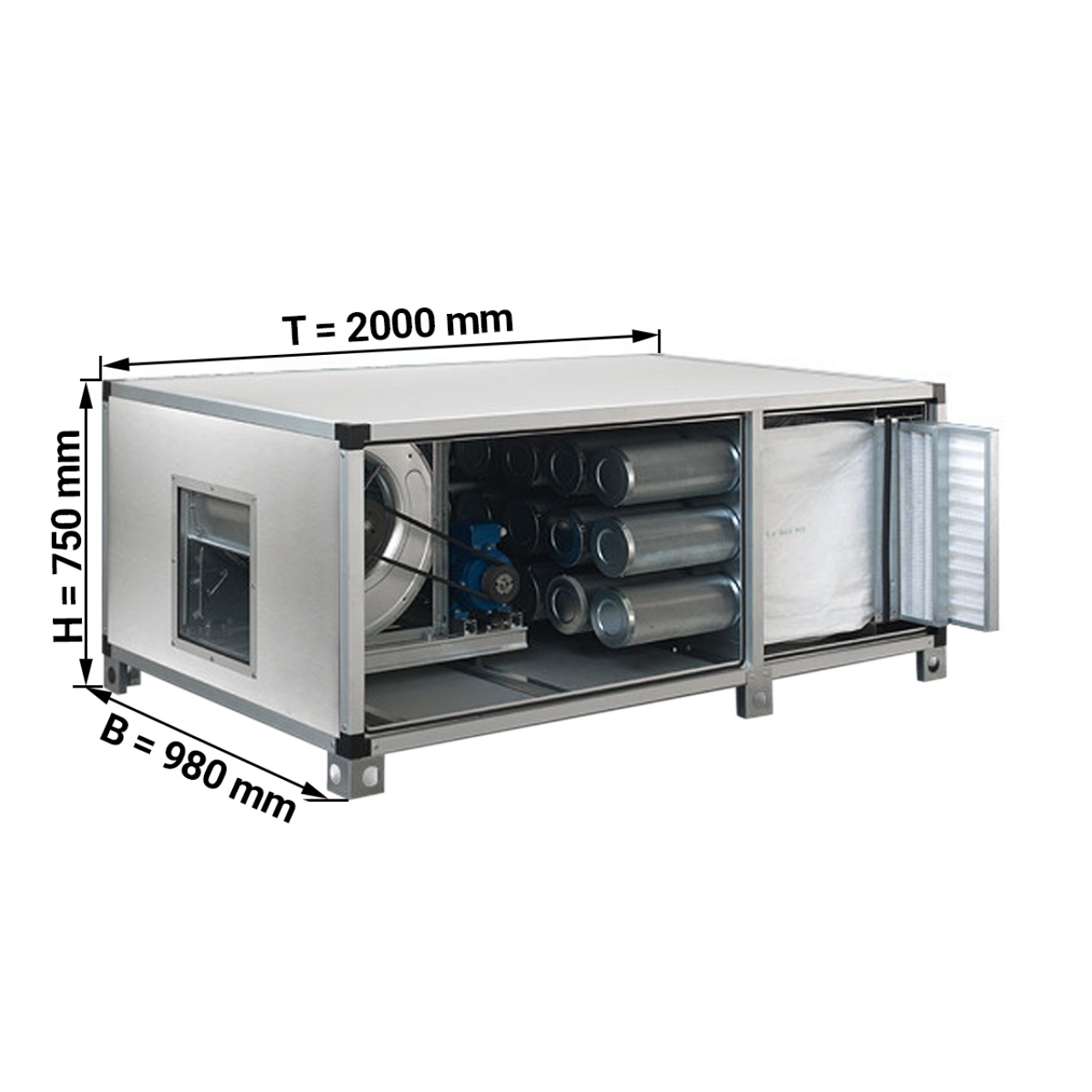

Mitat: B 980 x T 2000 x H 750 mm
Varastossa
-
+
Lisää koriinKysy hintaa
Design
- Low-noise activated carbon filter system
- TOP performance 5400 m³
- With motor
- Low energy consumption
- Environmentally-friendly
- Radial fan with dual exhaust

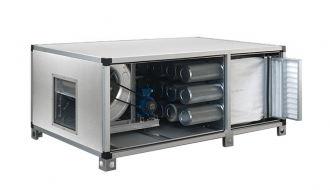

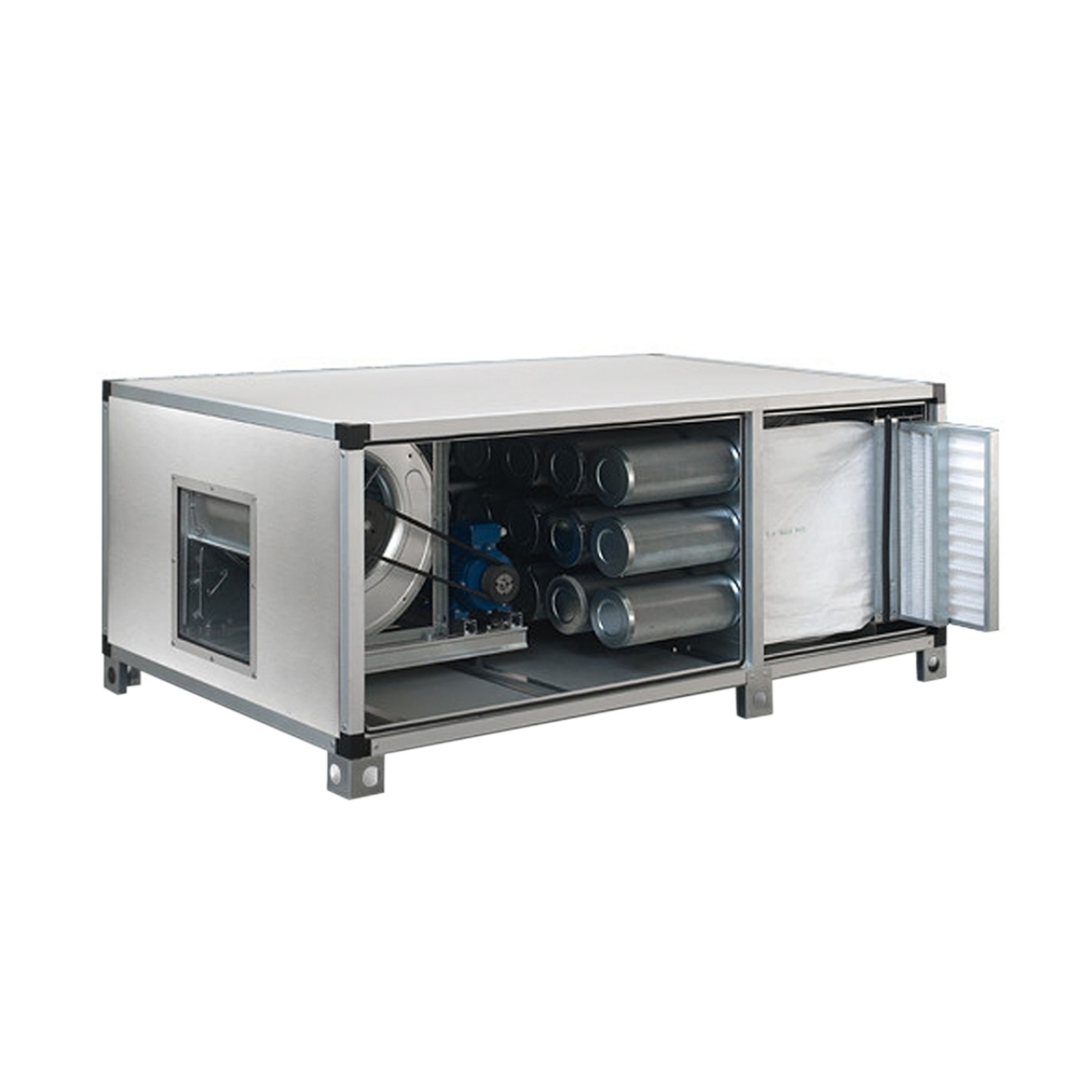

- Pre-filter, pocet filter and activated carbon filter
- Air filtration and deodorisation
- Deodorisation (removal of undesired smells)
- Easy to clean
Quality
- Aluminium profile frame
- Noise and pressure resistant covering
- Interior made of hot-dip galvanised sheeting and stainless steel exterior
Connection:
- Output: 1,5 kW
- Electric connection: 400 Volt / 3 L / 50 Hz
Dimensions
- External dimensions W x D x H: 200 x 980 x 750 mm
scope of supply
- Engine
- 14x activated carbon filtres
- 2x Prefilter
- 1x Pocket filter
Guidelines
- ErP Guideline 2018
- Produced according hygiene and safety requirements
- EU, CE and the product has been produced in accordance
Note

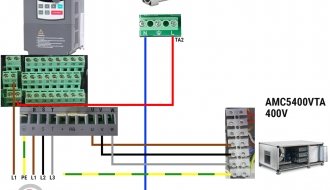

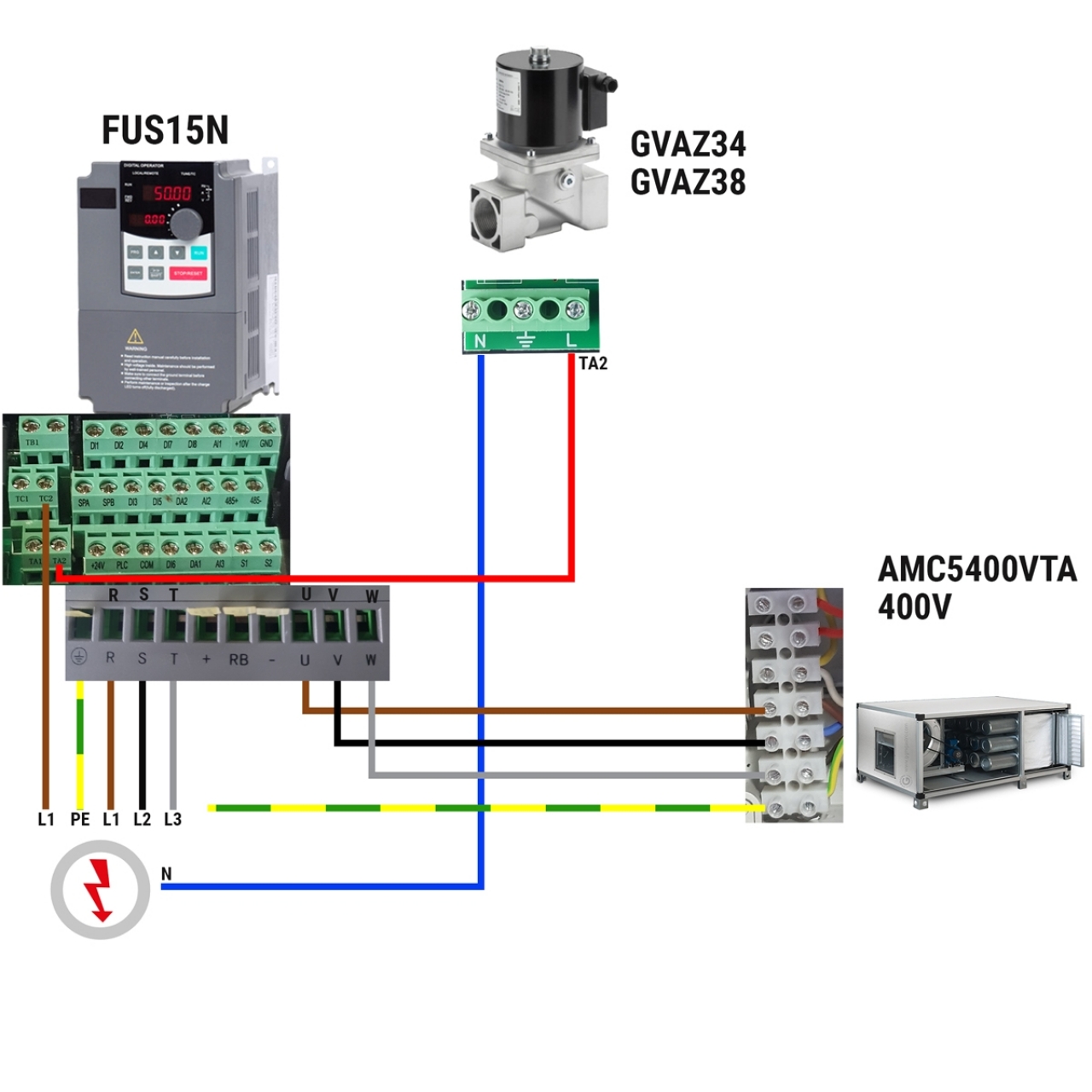

- IMPORTANT: to avoid motor failure, it is important to connect the existing thermal contact to the speed controller. A fault due to an unconnected thermal contact is not covered by the warranty.
- Operation only with an inverter!

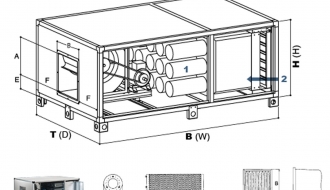

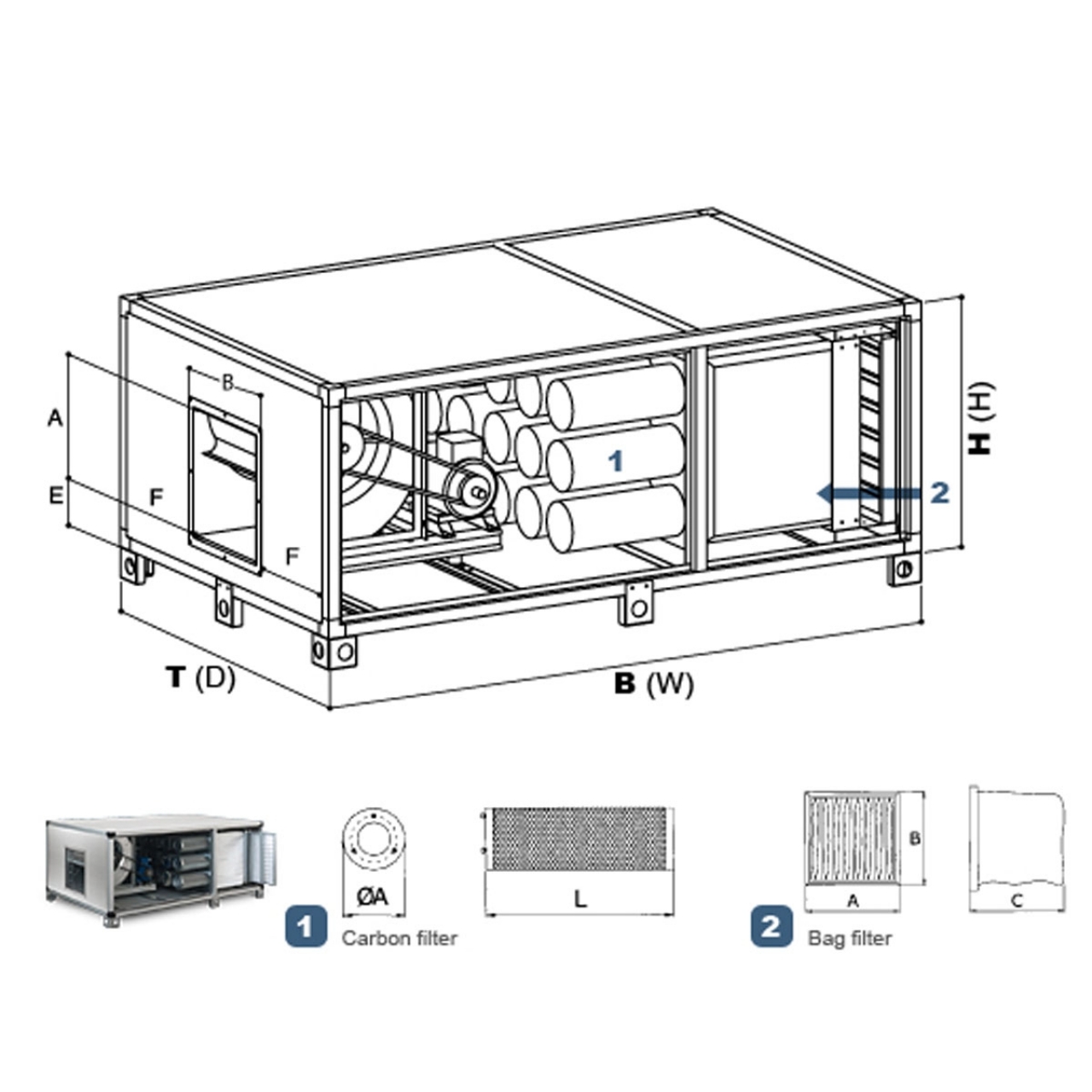

Dimensions
| Width | 2000 mm |
|---|---|
| Depth | 980 mm |
| Height | 750 mm |
| Dimensions prefilter W x D x H | 287 x 879 x 48 mm |
| Dimensions pocket filter W x D x H | 900 x 592 x 380 mm |
Details
| Speed regulation | Frequency converter |
|---|---|
| Number of activated carbon filters | 14 Pieces |
| Number of pre-filters | 2 Pieces |
| Number of bag filtres | 1 pieces |
| Air turnover per hour | 5400 m³ |
| Air temperature | 50 °C |
| Ambient temperature | -20 °C to +40 °C |
Connected loads
| Output | 1,5 kW |
|---|---|
| Voltage | 400 volt |
| Frequency | 50 Hz |
| Phases | 3 |
Delivery
| Shipping type | forwarding agency |
|---|---|
| Delivery condition | assembled |
| Weight | 286 kg |
Lisäinformaatio
ErP2018 - 1500 Watt - 400 VoltLiittyvät tuotteet
