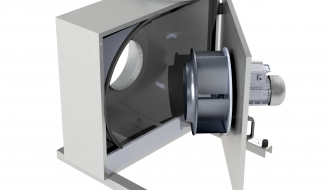

Airbox Pro 2825 m³ per hour
Tuotekoodi: SKUAS2825PRO
Tavaran paino: 41kg
Mitat: B 690 x T 539 x H 620 mm
Varastossa
-
+
Lisää koriinKysy hintaa
Design
- PREMIUM model
- Maximum motor power2825 m²

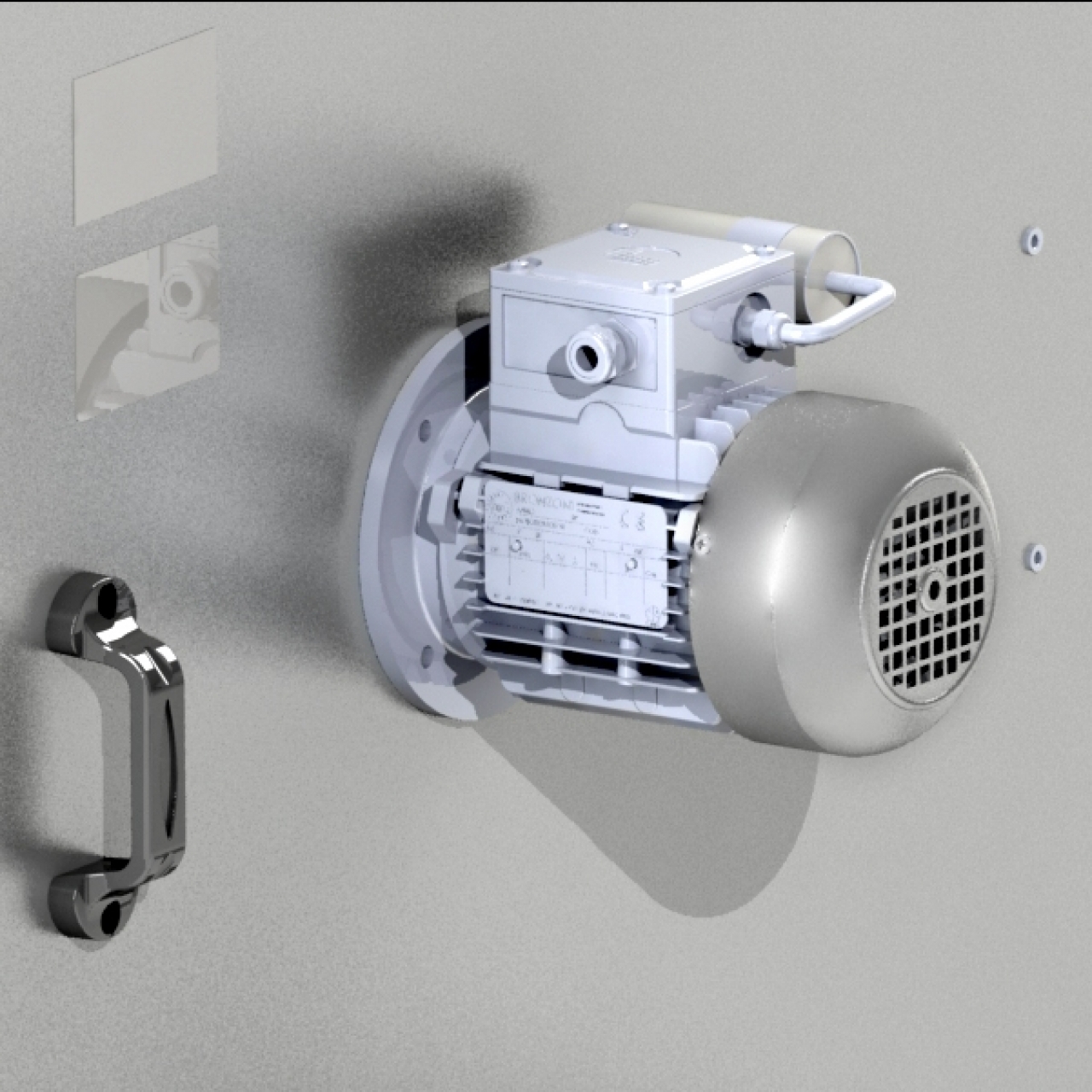

- With centrifugal ventilator
- Perfect for charcoal grills
- Air intake already prepared
- Optimal performance with low electricity consumption

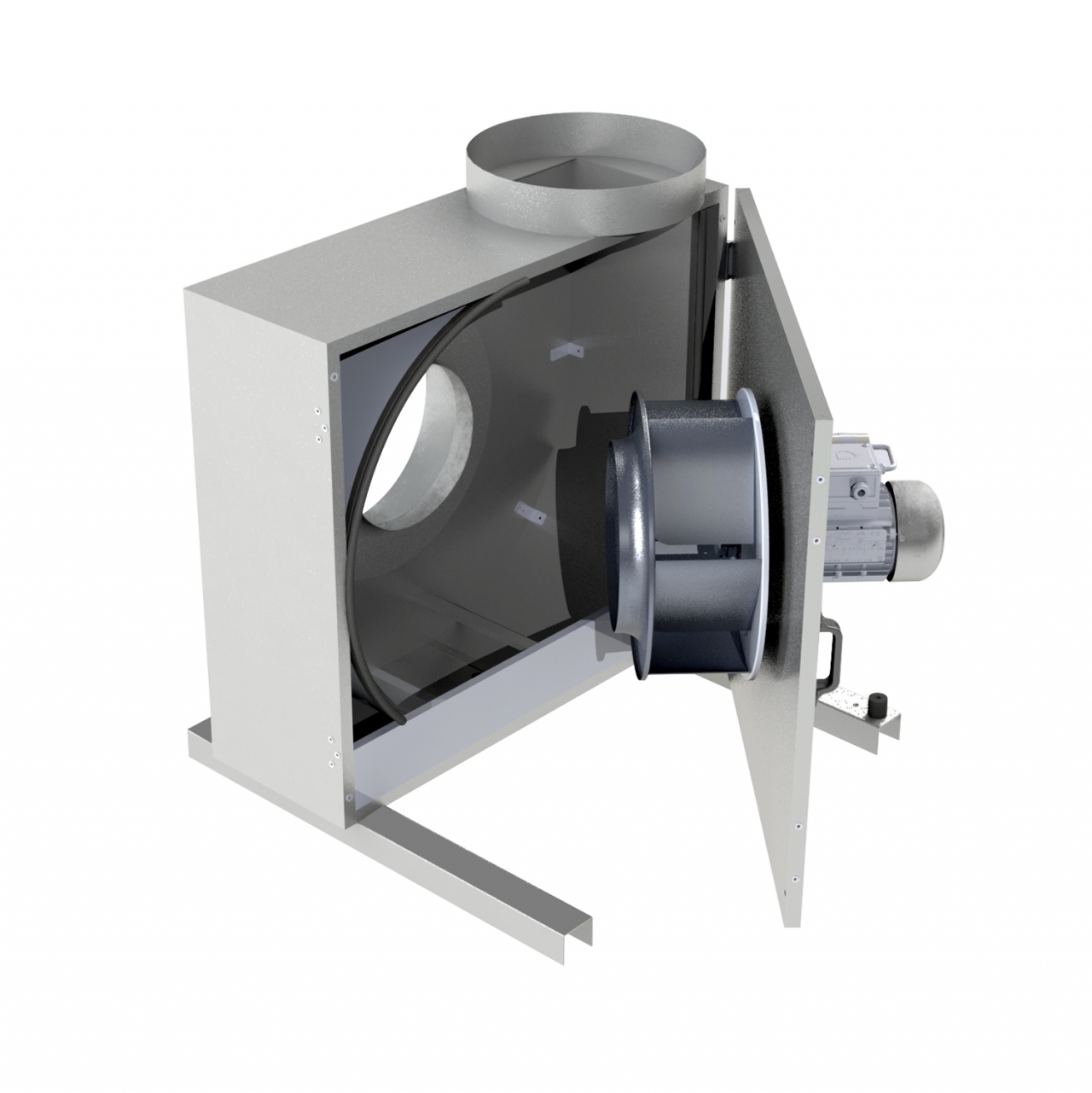

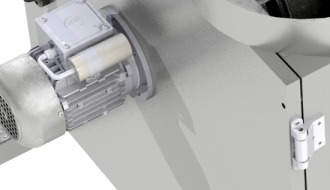

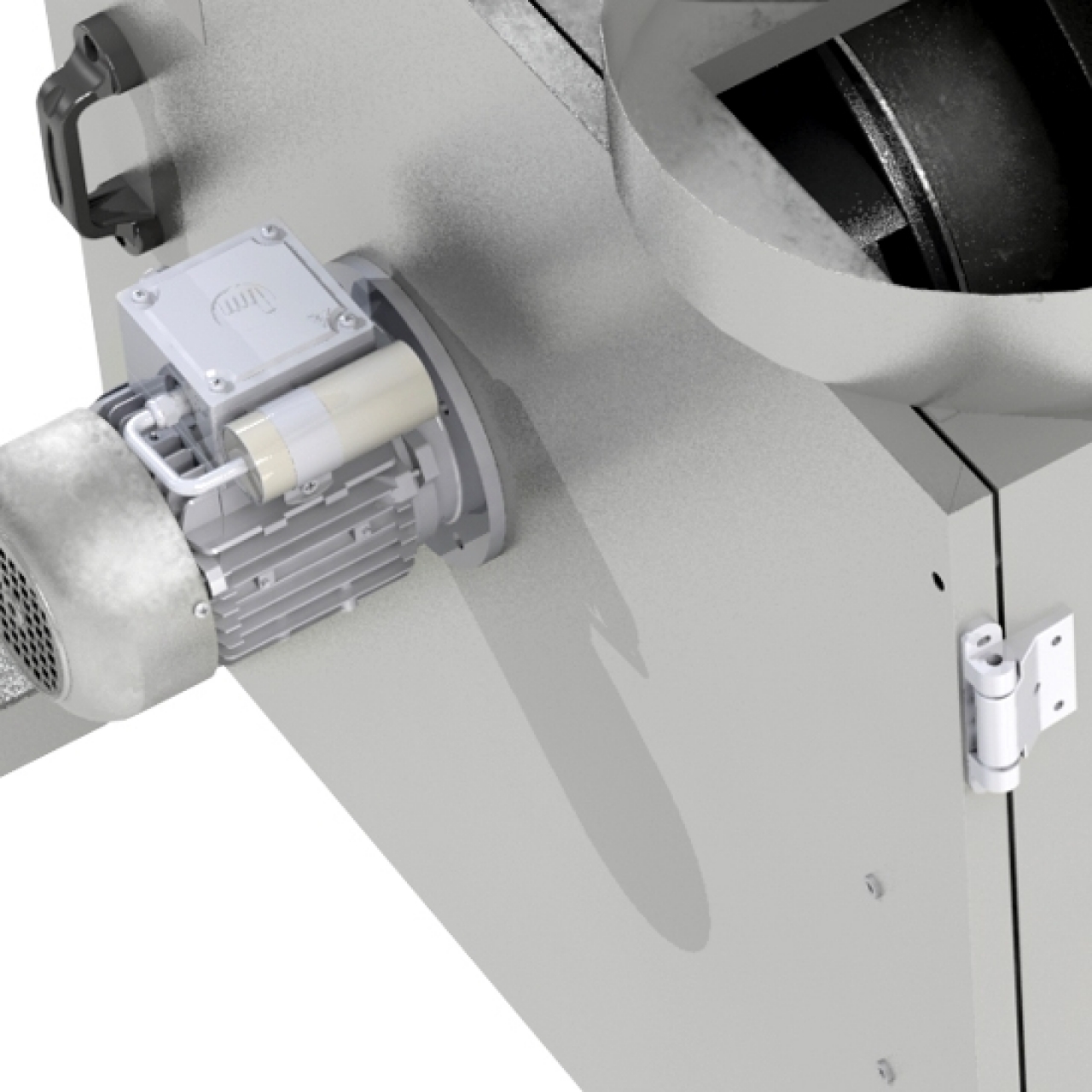

- Hinged inspection opening for easy care and cleaning

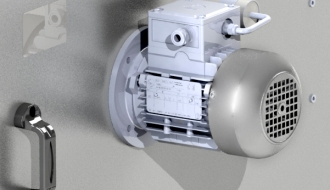

- Easy removable ventilator
- Easy to clean
Quality
- Weatherproof covering made of galvanised steel sheet
- Heat and sound insulated (polyurethane hard foam insulation)
- Reliable ventilation
Connection:
- Output:250 Watt

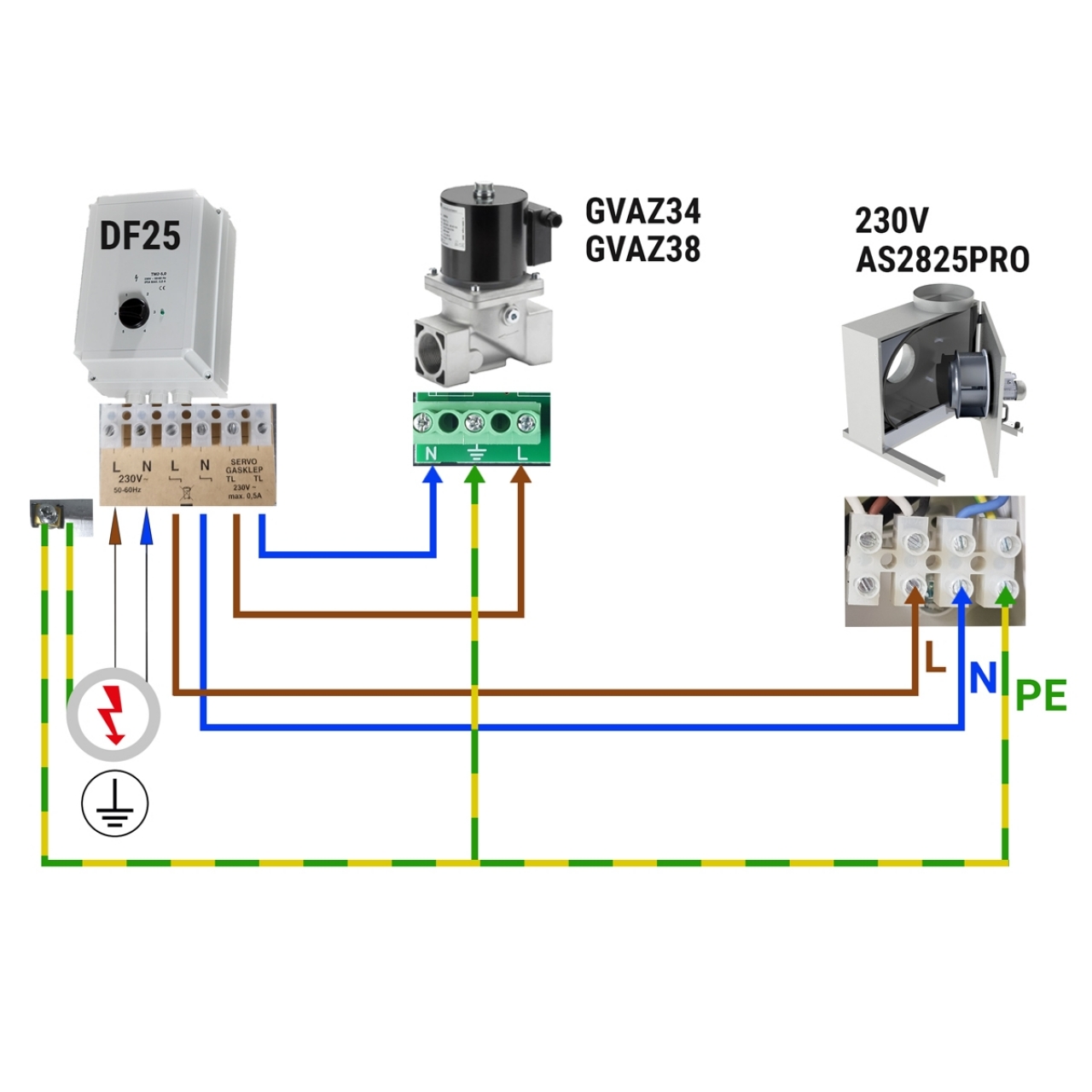

- Electric connection: 230 Volt / 1 L / 50 Hz
Dimensions

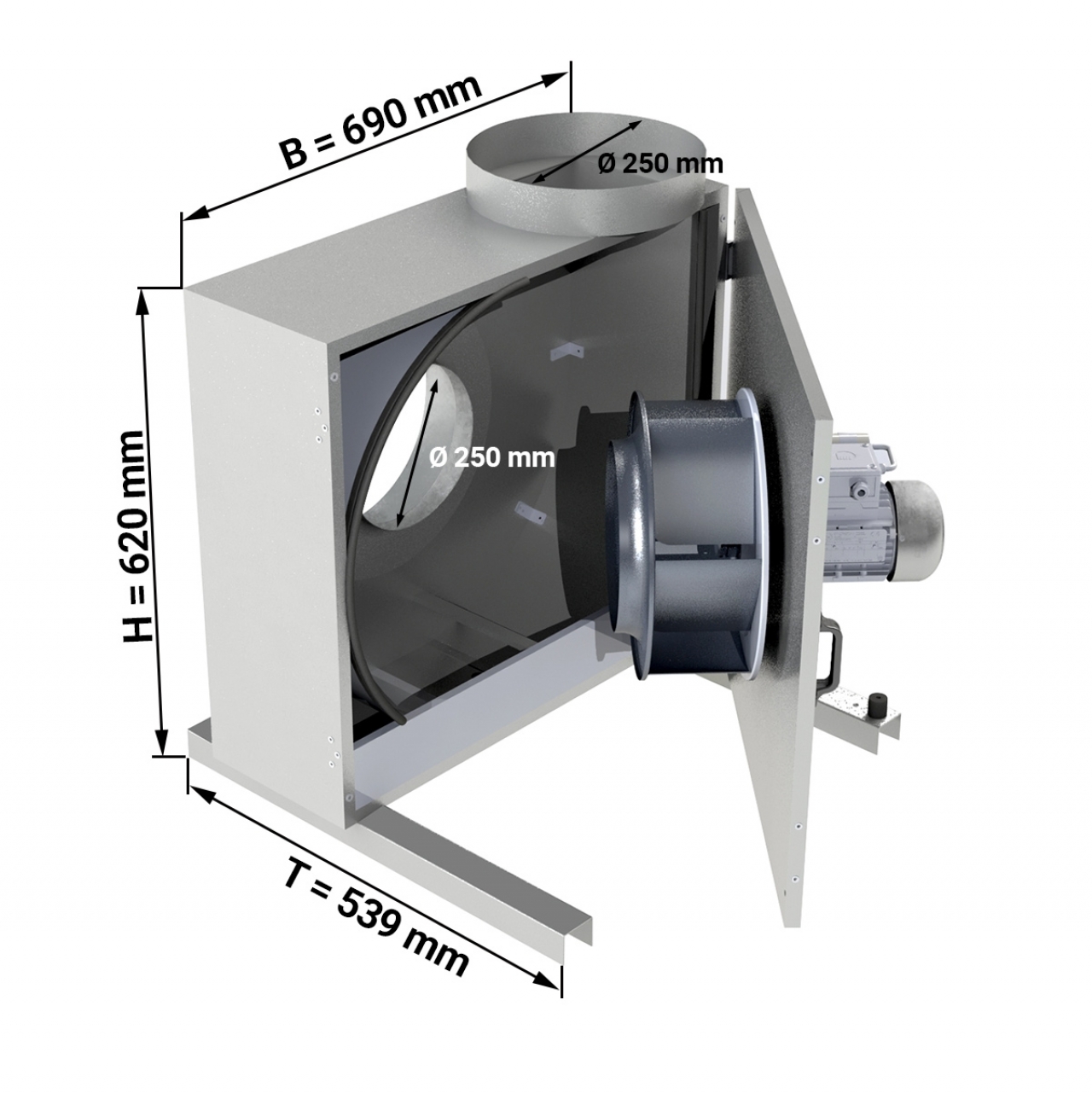

- External dimensions W x D x H: 690 x 539 x 620 mm
Guidelines
- Meets DIN 18869 - T1 according to VDI 2052
- Produced according hygiene and safety requirements
- EU, CE and the product has been produced in accordance
Dimensions
| Width | 690 mm |
|---|---|
| Depth | 539 mm |
| Height | 620 mm |
Details
| Air turnover per hour | 1800 m³ - 2825 m³ |
|---|---|
| Diameter of suction support | 250 mm |
| Pumping medium - temperature | -20 °C to +120 °C |
Connected loads
| Output | 250 watt |
|---|---|
| Voltage | 230 volt |
| Frequency | 50 Hz |
| Current | 2,8 amp |
| Phases | 1 |
Delivery
| Shipping type | forwarding agency |
|---|---|
| Delivery condition | assembled |
| Weight | 41,5 kg |
Lisäinformaatio
VDI 2825 W 1F 2P 1VLiittyvät tuotteet
